Spring Harrow
PERFECT SOIL MONITORING IN ALL CONDITIONS!

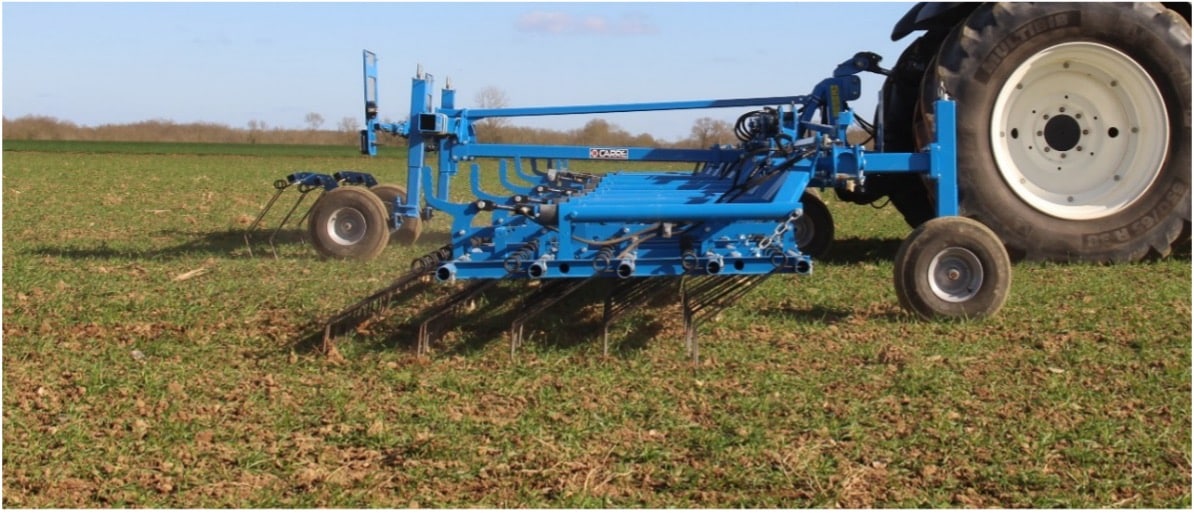

The SARCLERSE CONTROL combines all the benefits of the standard SARCLERSE with a contour following system improved by a swivelling rear axle. The latter allows operating a spiked harrow which follows the ground profile accurately to guarantee stable adjustment of the teeth in all conditions.
The hydraulic tine angle adjustment, from the tractor cab, is integrated to SARCLERSE CONTROL for better working comfort and fast adaptation to heterogeneous plots.
Compact tines Ø7mm (L=430mm) or long tines Ø7mm (L=530mm) according to the type of crop and soil.
Available in 6, 9 and 12m in carried version!
Frame
- Three-point linkage with anti-rotation pins category 2/3 with upper floating shaft
- One-piece mechanically welded frame in 100x5mm and 100x8mm tubes
- Folding joint with thick polyamide bushes
- Folding at 3m00 with hydraulic locking
- Hydraulic locking of extensions on scissor folding chassis
-
Compact tines Ø7mm (L=430mm) or Ø7 long (L=530mm)
- Tine angle hydraulic adjustment
- 4 topsoiling wheels at the front and 2 rear wheels on swivel frame dimension 16×6.50-8 (Ø410x170mm) up to 6m and 18.5×8.50 (Ø460x220mm) from 9m
- Trail breaker combs at the back of the 2 swivel wheels
- Road light and signals included
An optimised result
- Floating linkage with 6 front / rear control wheels
- Tine attack adjustment from the tractor cab
Two types of folding
From 9m : scissor folding to reduce transport height.
Standard folding
Scissor folding
Width : form 6 to 12 m
| STANDARD FOLDING | SCISSOR FOLDING | ||
| Width (m) | 6 | 9 | 12 |
| Folded height (m) | 2,2 | 2,5 | 3,25 |
| Number of sections | 4 | 6 | 8 |
| Number of tines | 120 | 180 | 240 |
| Number of fingers | 240 | 360 | 480 |
| Number of wheels | 6 | 6 | 6 |
| Power requirement (hp) | 60 | 80 | 90 |
| Weight (kg)* | 820 | 1310 | 1640 |
* According to equipment
From 9m : scissor folding to reduce transport height.
Rapid tine changing!
The mounting system eliminates play (constant elastic pressure mounting) between the tine tube and the double tine.
The clip is held tightly against the tube due to the constant tine pressure, which guarantees that the tines are well held.
Ø7 mm compactes (L=430 mm)
Stiffer and less vibration
Ø7mm standard (L=530 mm)
More flexible and enhances vibration
Hydraulic adjustement
| Designation | Pictures | Use | |||
| Wheel mounted area meter |  |
Measure the area covered | |||
| Extension 50cm with tines |  |
To increase width of 50 cm | |||
| Independent hydraulic folding of the extensions |  |
To fold each extension independantly | |||
