Deep soil
The futur is in the row!
CARRÉ offers different frames according to the number of elements to obtain the best cost / resistance / versatility ratio:
– Single beam chassis are ideal for crops with fixed-interval and a small variety of conditions,
– Twin-beam chassis meet the needs of those who wish to use a machine on a wide variety of crops with different inter-row spacings.
– Triple beam chassis are design for big width mounted versions and maintain extensions in sandwich for high rigidity.
Finally, we can design trailed models according to the needs, which makes it possible to combine the passage of the Strip-till with a seeder.
Using our experience in hoeing, we have designed an element optimized for row work only Each element is mounted on a paralellogram and benefits from its own pair of depth wheels to ensure a regularity in the working depth from one end to the other of the machine whatever the width of the tool.
Each disc is mounted with its own security and can be independently adjusted. Numerous adjustments are possible, all by hand and without tools (trash wheel discs, deflector discs, working depth and re-pressing of the roller). Visual elements make it possible to quickly check all the settings of the machine and to reproduce them on all the elements.
Please consult us for trailed versions!
The frame
Fix Single beam chassis:
- 3 point linkage between clevis N°3 – Pin N° 2/3
- Frame square tube 120
- Work 4 rows at 75 or 80 cm or
6 rows at 45 or 50cm - Road light and signals included

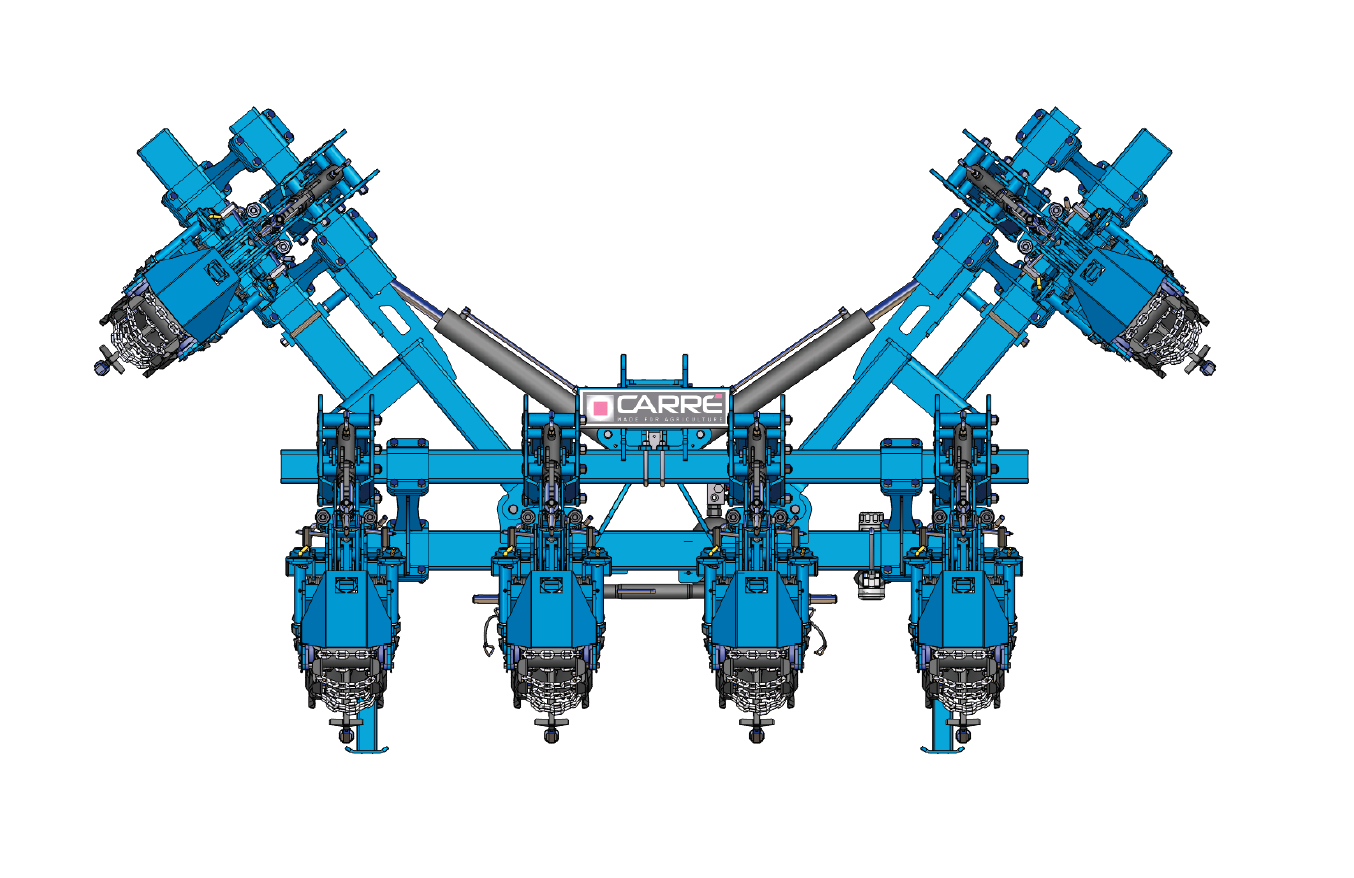

Folding twin beam chassis:
- 3 point linkage between clevis N°3 – Pin N° 2/3
- Square tube frame 140 front and 120 rear
- Hydraulic folding at 3m – by 2 double acting
cylinder , with hydraulic and mechanic security - Work 6 rows at 75 or 80cm or 7 rows at 60cm
- Road light and signals included
Folding triple beam chassis:
- 3 point linkage between clevis N°3 – Pin N° 2/3
- Square tube frame 180 + double
rectangular tube front and rear 180×100 - Hydraulic folding at 3m – by 2 double acting
cylinder , with hydraulic and mechanic security. - Work 8 rows at 75 or 80cm or 12 rows at
45 or 50cm or 9 or 11 rows at 60cm - Road light and signals included
The sections
RAPE & BEET Model
Smoother Openning discs Ø 500
Deflector notched disc Ø 350
Tine with carbide ploughshare 50
Deflector roller disc Ø 460
Chain sprocket Ø 340
MAIZE – SUNFLOWER model
Smoother Openning discs Ø 500
Deflector notched disc Ø 350
Tine with carbide ploughshare 50 + carbide fins
Deflector roller disc Ø 460
Chain sprocket Ø 340
Well finished work
- It is possible to adjust the implement settings both easily, and without tools
- For a good job, the wrking section is divided in three parts, possibility to change independantly the point, the leg or the wing.
WIDTH : FROM 4 TO 12 ROWS
| Frame type | Number of rows | Inter-row spacing (cm) | Weight (Kg) | Power requirement (hp) | |
| Mechanical safety | Hydraulic safety | ||||
| Maize – (75-80 cm) | |||||
| Rigid single beam chassis | 4 | 75 | 1336 | 1356 | 80 |
| 80 | 1336 | 1356 | 80 | ||
| Folding double beam chassis | 6 | 75 | 2314 | 2334 | 120 |
| 80 | 2314 | 2334 | 120 | ||
| Folding triple beam chassis | 8 | 75 | 2887 | 2912 | 160 |
| 80 | 2887 | 2912 | 160 | ||
| Sugar Beet – Rape (45-50 cm) | |||||
| Rigid single beam chassis | 6 | 45 | 1986 | 1928 | 120 |
| 50 | 1986 | 1928 | 120 | ||
| Folding triple beam chassis | 12 | 45 | 4165 | 4056 | 240 |
| 50 | 4165 | 4056 | 240 | ||
| Sunflower – (60 cm) | |||||
| Folding double beam chassis | 7 | 60 | 2598 | 2623 | 140 |
| Folding triple beam chassis | 9 | 60 | 3155 | 3201 | 180 |
LIKLOC : valorize manure with a real soil work tool !
CARRÉ gives you the opportunity to integrate manure in the future seeding line!
Work with inter-row spacing between 75 and 80 cm.
Equipment made of a distribution head, 8, 12 or 16 outlets, descending pipes Ø50mm.
Outlet adjustable with 2 height behind the tine for a perfect positionning of your manure.
FERTILOC: For controlled granular fertiliser application!
If you use granular fertiliser, we have the solution that will meet your requirements!
Work an inter-row between 45 to 80 cm
This equipment is made of a distribution head, from 4 to 12 rows,
Column Ø130mm, descending pipes Ø40mm, cyclones, splines Ø40mm and pipes.
Outlet adjustables in height behind the tine for a perfect positionning of your fertilizers.
SEMLOC : Sow at the same time !
- Sowig in lines
- 200L seeder with pneumatic distribution avec electric blower
- Centralized flow insured by radar
- Seeding line with notched discs Ø415 + pressure wheel 50mm
| Designation | Pictures | Use | ||
| Pair of depth control wheels Ø 135×168 mm |  |
To control the working depth | ||
| Spring recovery disc Ø460 mm |  |
Make a surface pass on a maximum depth of 5/7 cm | ||
| Cast iron roller Ø440 mm |  |
Repress worked line, in order to make a strong repress on the future seeding line |
||
| Chain toothed roller Ø340 mm |  |
Presses down the worked strip to ensure fi ne earth on the surface to avoid speeding up reheating |
||
