A strong frame with 3 or 4 tines row, designed to receive our mechanical non stop tine OLLADRA

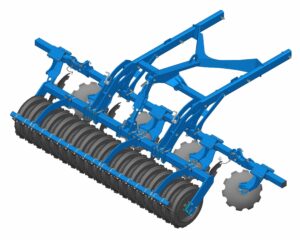

The ONATAR NEO allows a good versatility working in surface and in deep soil.
The space between each beams and each tines make easy the evacuation of plant debris and earth flow.
Tine is maintained by a notch to keep its position.
The ONATAR NEO provides a disengagement under chassis to limit jamming risks whatever quantity of residues.
Carried version available in 3 to 5 m widths !
Double hydrau-mechanical safety locking (transport and work)
Mechanical non-stop tine double spring model OLLADRA Clearance 840 mm – Vertical clearance 250mm Break back effort from 550 kg
The widths : from 3 to 5m
| FIXED | FOLDING | |||
| Width (m) | 3 | 3,50 | 4 | 5 |
| Inter-tine spacing (mm) | 295 | 295 | 310 | 310 |
| Number of tines | 10 | 12 | 13 | 16 |
| Power requirement (hp) | 120 à 200 | 140 à 220 | 160 à 250 | 205 à 300 |
| Weight (kg)* | 1700 | 2000 | 2800 | 3300 |
The working depth is controlled entirely by the rear equipment and the front depth wheels.
This keeps the machine stable and the working depth constant, even at high speeds.
Working depth range of the tine: 5 to 30 cm.
For a good finish, choose the rear roller of your choice (see the equipment page).
OLLADRA
Double spring non stop tine with point 120 twisted leg
+ mouldboard 100 twist
+ wing L/R 300mm
Dent sécurité boulon Soc pointe 120mm
+ mouldboard 100 twist
+ wing L/R 300mm
80 mm pointed coulter + 80 mm mouldboard
Deep loosening, good mixing intensity

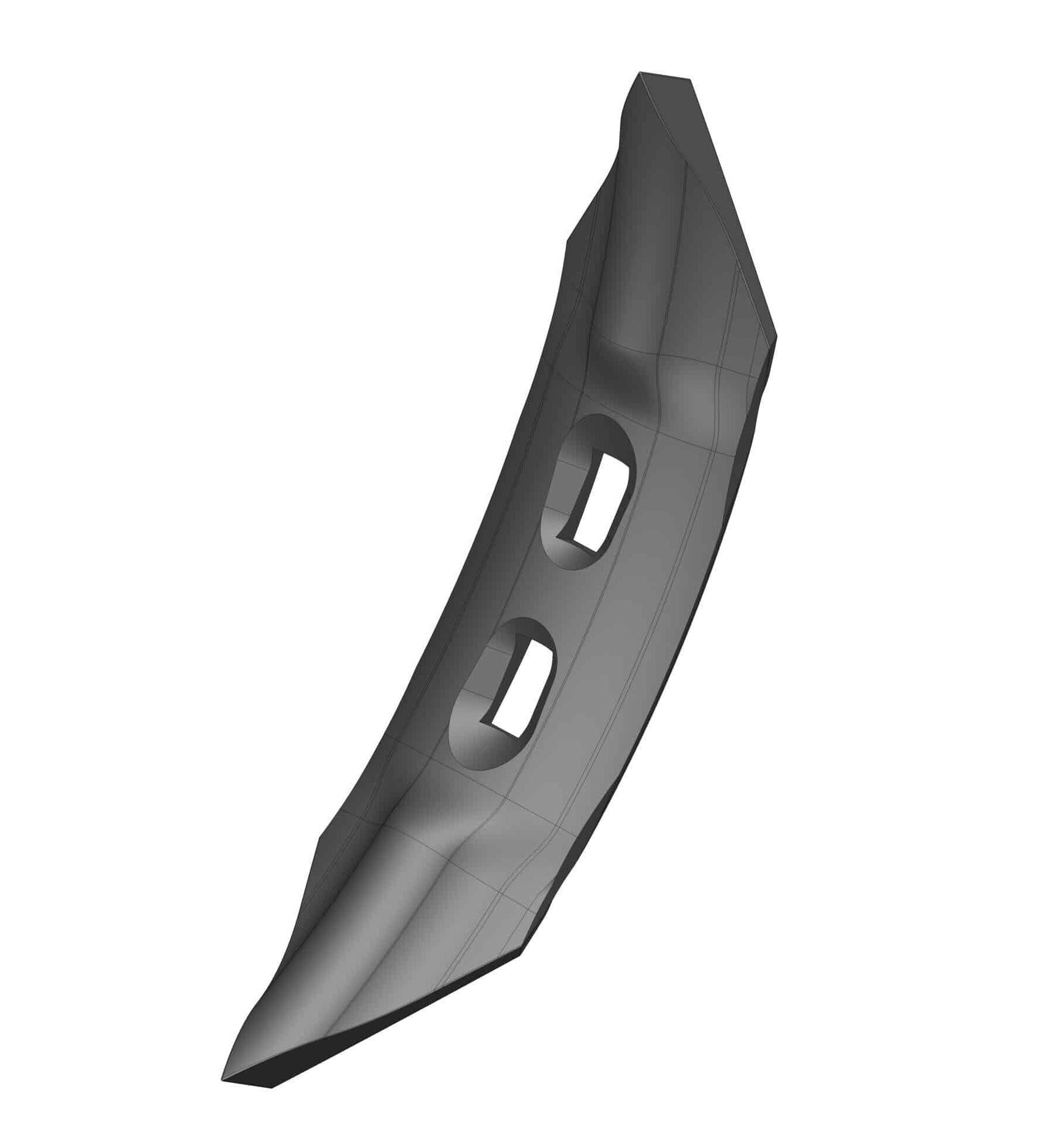

60mm reversible ploughshare
Deep loosening, very low mixing intensity
Single roller, 10 square beams, 25 Ø600mm with mechanical adjustment + levelling discs
Single flexible blades roller Ø520mm with mechanical adjustment + levelling discs
Single U-roller Ø500mm
with mechanical adjustment + levelling discs
Single roller with Ø 600 mm cutaway disks with mechanical adjustment + leveller disks
Comb harrow Ø16mm with mechanical adjustment / 1 row for simple roller
A pair of parallelogram mounted lateral deflectors
Pair of reinforced 10 ply wheels Ø 530x155mm
Carbid version

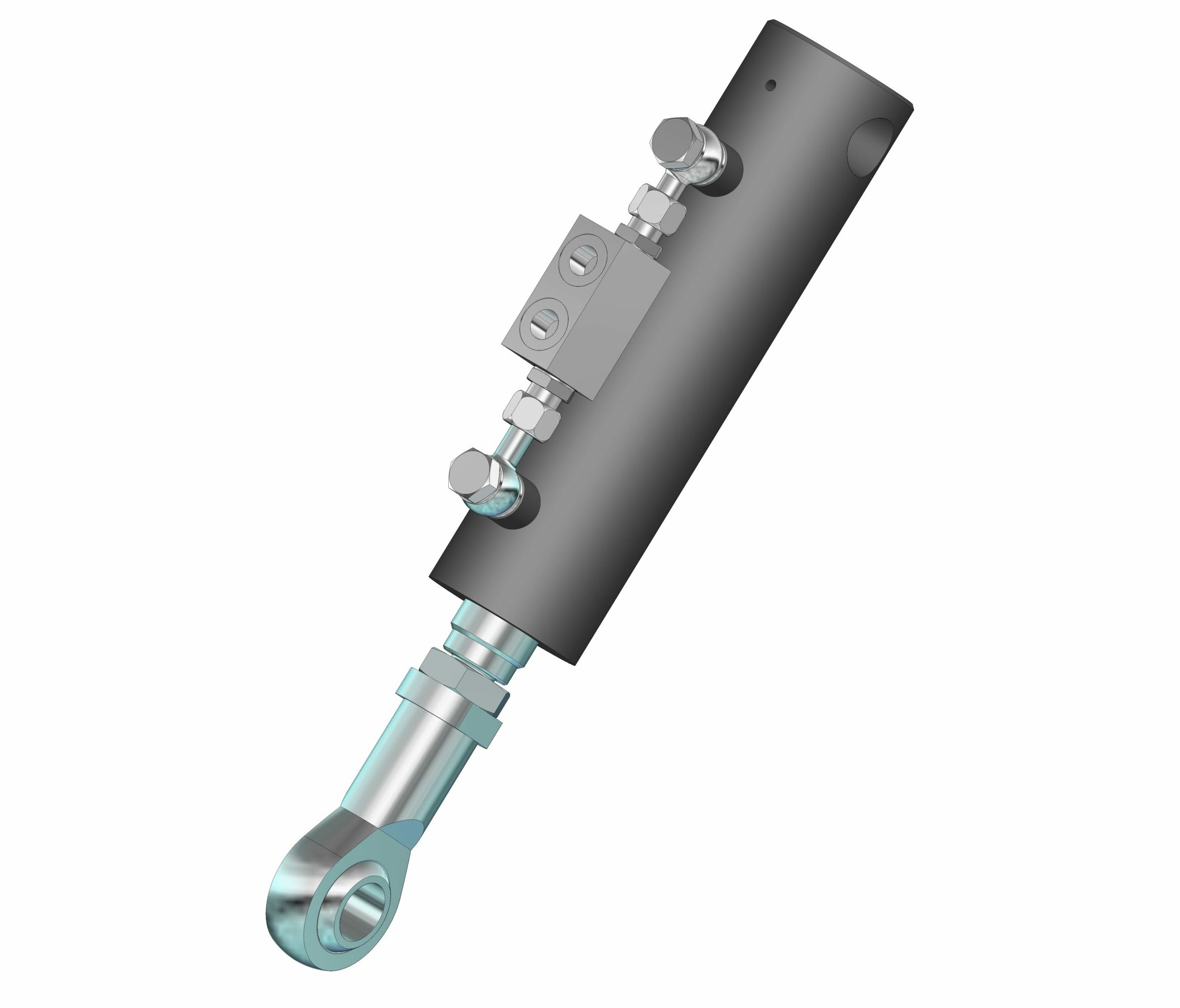

Hydraulic adjustment version
