GRASSLAND REGENERATOR

Let your animals benefit from aerated, levelled and moss free grassland !

The Prairial allow 4 actions in only one pass at 15km/h :
– Scarify to open the soil and promote soil – air exchange,
The knives can be manually or hydraulically adjusted and can pivot if necessary .
– Level thanks to notched blades to split dungs, and moll hills in order to increase good spreading of soil and natural fertiliser.
– Foam to evacuate dead mosses and grasses,
The assembling on spring blades allow to support important stress.
The knives quincux disposition and levelling blades make easier residue evacuation.
– Sow to re-implant the grasslands on the fly at the same time.

Available from 3 to 6m !

See specifications
  • PROCESSUS PEINTUREHydraulic and mechanic locking safety (transport and work position)
  • TRACTEURAssembling of levelling blades and knives on spring blades (80x12mm) to support important stress. The blades angle of attack prevents stones from being brought up. Mounted alternately to improve the flow of debris. Easily adjusted depth wheels by graduated screw jacks.
TRACTEUR
A demonstration ?
Make a request
The documentation
Download the documentation
Our importers
View the map
The product notice
Download the notice
Spare parts
Discover

Find your machine’s registration number in the instruction manual, or on the number plate affixed to the machine:

38024290 > PRAIRIAL FIXE
Download the notice
38024295 > PRAIRIAL REPLIABLE
Download the notice
38018503 > PRAIRIAL
Download the notice
  • 3 point hitch with anti-rotation pin category 2/3
  • Chassis using 100x8mm, 120×60x8mm and 200×100x5mm tube
  • 4 bars in tube (70x5mm) in HLE steel in order to endure the important constraints linked to the use in meadow.
  • Twin section welded folding frame
  • Pivot point with polyamide bushes to avoid steel/steel contact.
  • Folded width 2.5 m with hydraulic and mechanical double locking
  • Road light and signals included

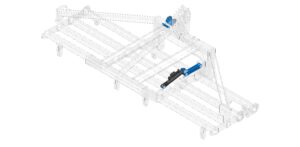

Opt for more comfort with knives hydraulic adjustment

It is possible to adjust the implement settings both easily, and without tools

Articulation system of extension allows to adapt to soil level and work in all positions

Compact folding of chassis, in 2 parts, at 2,50m to drive safely.

Our recommandations

FIXED FOLDING
Width (m)34,506
Distance between knives (mm)200250200250200250
Number of knives151222183025
Number of wheels2
Power requirement (hp)6080100
Weight (kg)*7827511193115115001563

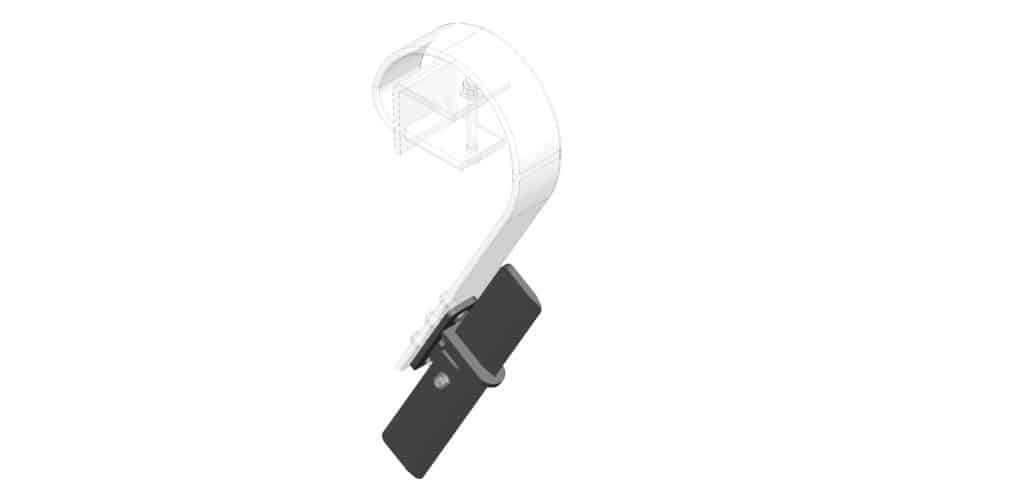

Couteau_PRAIRIAL

Reversible boron treated steel knife: minimise your costs

SOWING SEED BY SURFACE BROADCASTING

SEMLOC

2 hopper capacities : 250 and 400 litres

  • Hopper treated against corrosion
  • Built-in access gangway
  • Hopper bottom mixer
  • Visual grain level window

2 distribution drive systems :
Mechanical skeleton wheel
Control monitor with GPS control

  • Flow rate is proportional to forward speed
  • Fast dosage calibration
  • 2 dosage rollers included for small and large seeds

2 blower operating systems : hydraulic and Electric

  • 3 pin 12 Volt socket for the electric version
  • Pressure + return line requiring a hydraulic flow of 20LPM for the hydraulic version
Wheel mounted area meter
Advanced hitch 200mm
Hydraulic adjustment of knives
