OUR SPRINGTINE CULTIVATORS

Ideal for big arable farming zone !

The most emblematic of our Springtine cultivators !

PENTASOL is the perfect tool for seed bed preparation thanks to its 5 lines of tines.
It can work up to 15cm at 12km/h speed ! Equipped with, to be chosen, 5 types of tines, spacing of 80, 100 or 120mm, an above reproach finition.
Its wide range of equipment makes it a tool that adapts to all demands.

Available from 4.10 to 8.10 m!

See specifications

Hydraulic locking safety (transport and work)
5 types of tines and 3 spacing to be chosen Great consistancy in working depth

A demonstration ?

Make a request

The documentation

Download the documentation

our importers

View the map

The product notice

Download the notice

Spare parts

Discover

Download the catalogue voucher
(This can be found in the instruction leaflet)

PENTASOL>NOTICE>38011704

Download the notice

THE FRAME

3-Point hitch between clevis No. 3 Pin Nos. 2/3 – 4.10 to 6.50 m models
3 points coupling N° 3/4 – model from 7,10 to 8,10 m
Welded frame , monoblock, square tube 100x8mm front/rear and crossing 100×10.

5 Tines carrying steel beams 50×15 – spacing 350mm between bars and bride th. 8mm.
Hydraulic folding at 3m with 2 cylinders double acting and with hydraulic safety
Road light and signals included

Our recommandations

Widths : from 4,10 to 8,10 m

	FOLDING
Width (m)	4,1			4,7			5,3			5,9			6,5			7,1			8,1
Inter-tine spacing (mm)	120	100	80	120	100	80	120	100	80	120	100	80	120	100	80	120	100	80	120	100	80
Number of tines	34	40	52	38	46	58	44	52	66	48	58	72	54	64	80	58	70	88	66	80	100
Power requirement (hp)	85 à 130			95 à 145			110 à 165			120 à 180			135 à 200			145 à 220			165 à 250
Weight (kg)*	1420			1550			1700			1900			1970			2140			2350

*Depending on equipment (average value with 100mm tine spacing, standard tine 32X12, comb harrow Ø10 and double flat bar roller Ø320 and 7 notched bar Ø270)

Strong points

LES AVANTAGES D’UN CHÂSSIS 5 BARRES

WELL FINISHED WORK

It is possible to adjust the implement settings both easily, and without tools
For a good finishing, opt for comb harrow and double roller

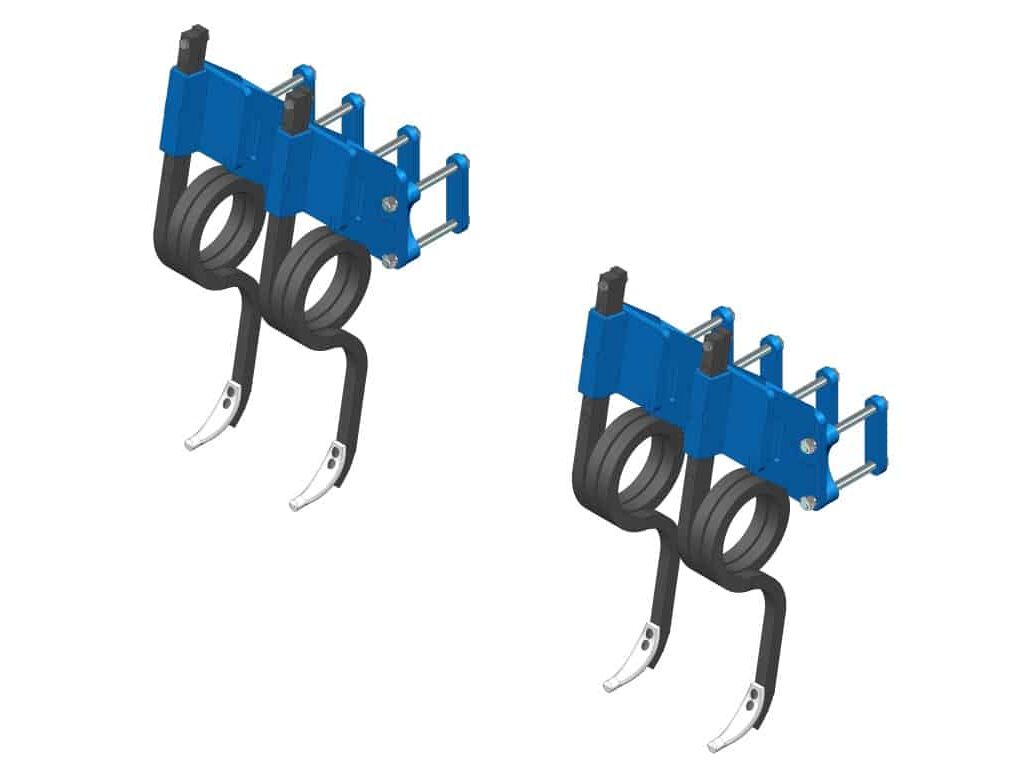

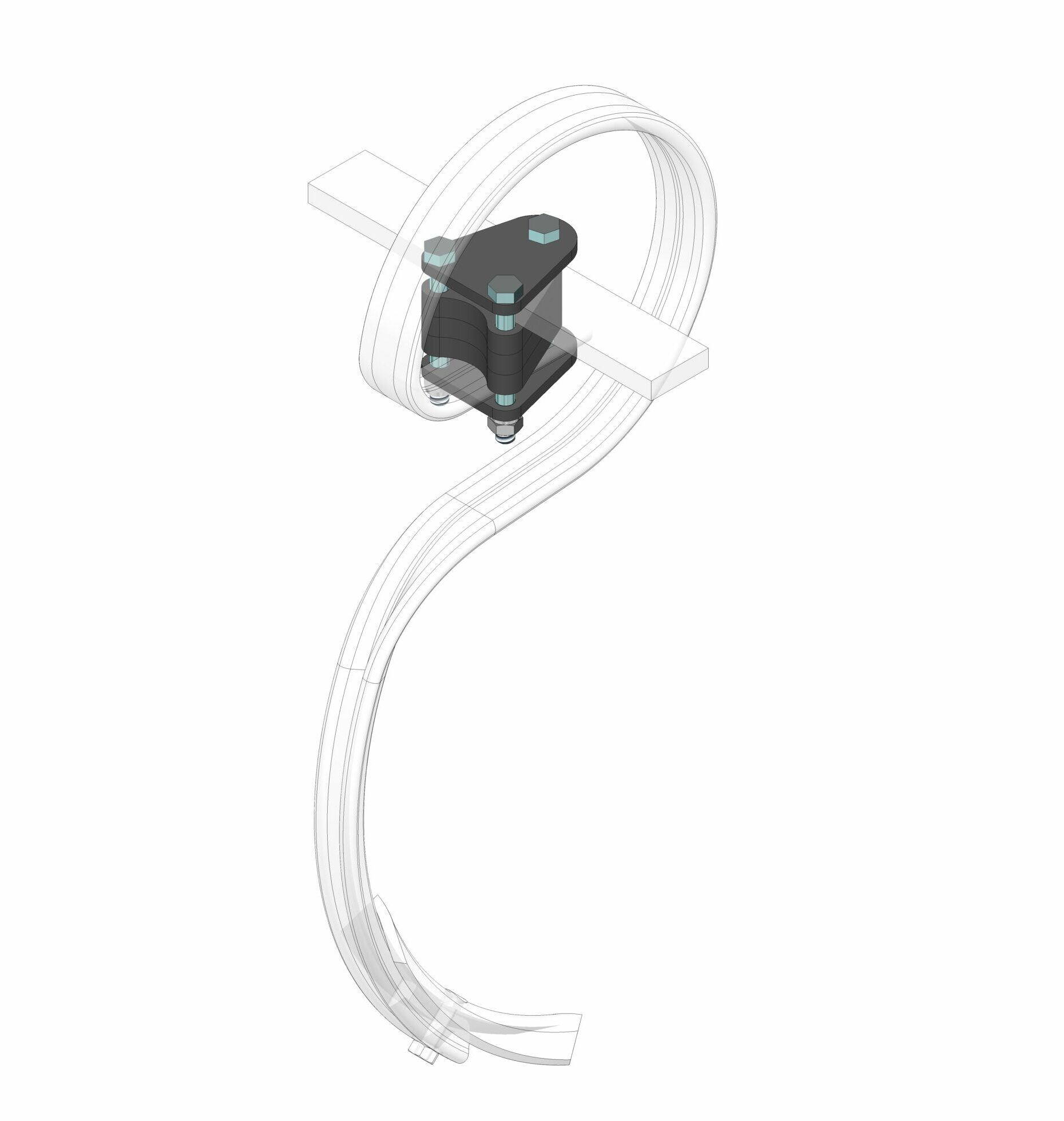

TINES

Standard tine 32×12
straight reversible
ploughshare
Clearance 390 mm

Straight tine 32×12
straight reversible
ploughshare
Clearance 450 mm

Straight tine 45×12
straight reversible
ploughshare
Under chassis clearance
430mm

Standard tine 45×12
reversible standard
ploughshare
under chassis clearance
530mm

32X12 tine rapid flow tine +
standard reversible ploughshare
under chassis clearance 390mm

THE EQUIPMENTS

Lame Flexiboard avec réglage mécanique ou hydraulique

Planche niveleuse sans dents ou avec dents carré 25mm réversibles

Herse peigne Ø10mm au pas de 100mm sans rouleau, compatible avec simple et double rouleau

Simple rouleau 7 barres crénelées Ø270mm

Simple rouleau croskillette fonte Ø290mm

Flexiboard levelling board with mechanical or hydraulic adjustment

Levelling board without tines all
with reversible square 25 tines

Comb harrow Ø10 100mm spacing without roller, available with single or double roller

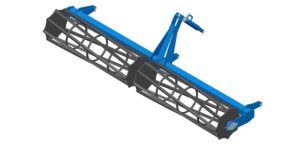

Single 7 notched bars roller Ø270mm

Single crosskillette roller Ø270mm

Simple rouleau 7 barres plates Ø320mm

Simple rouleau 7 barres carré 25mm Ø320mm

Simple rouleau 8 barres carré 25mm Ø380mm

Simple rouleau 8 barres carré 25mm Ø445mm

Double rouleau 7 barres plates Ø320mm et croskillette fonte Ø290mm

Single 7 flat bars roller Ø320mm

Simple roller 7 bar square 25mm Ø320mm

Single 8 square bars (25mm) roller Ø380mm

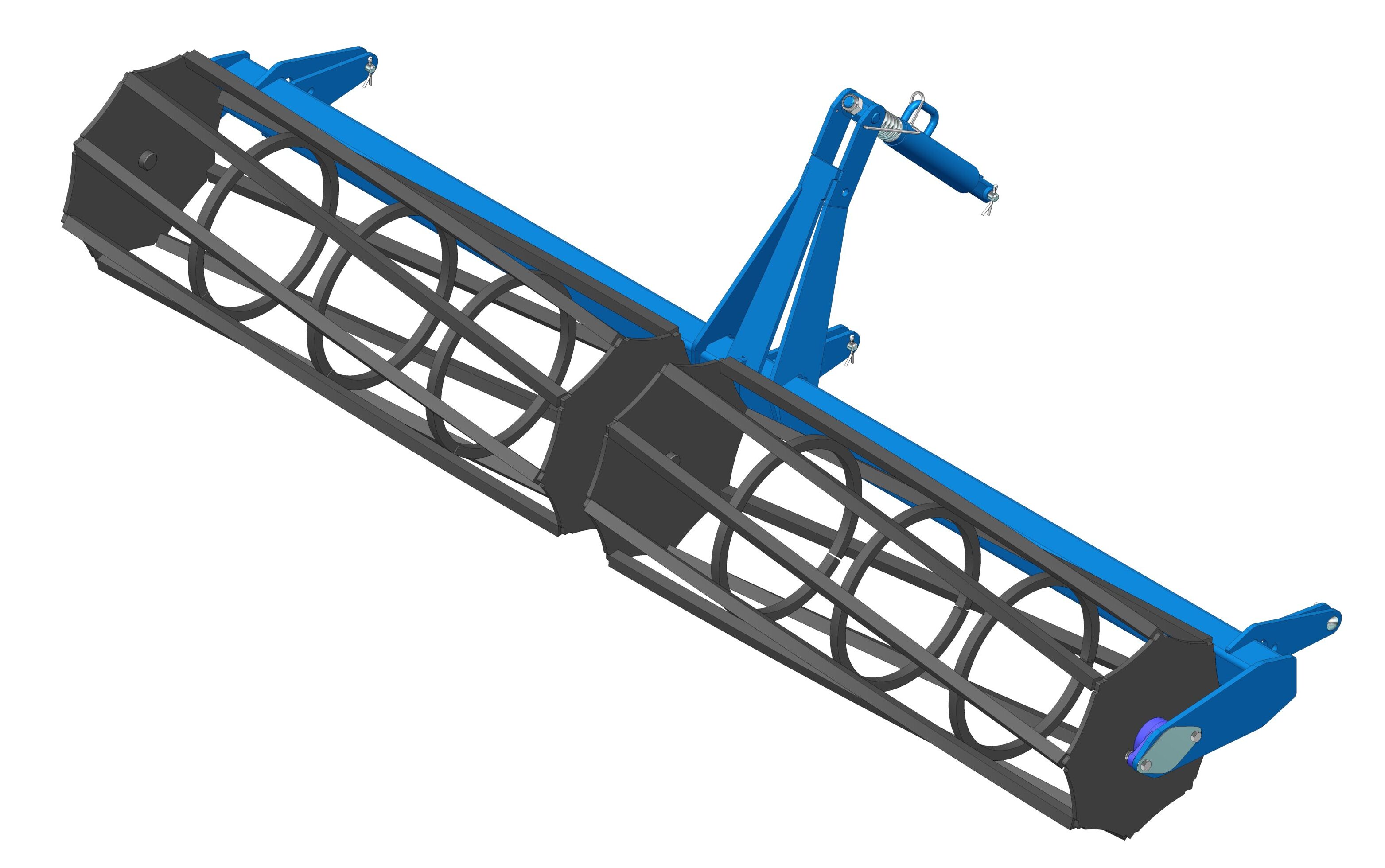

Single 8 square bars (25mm) roller Ø445mm

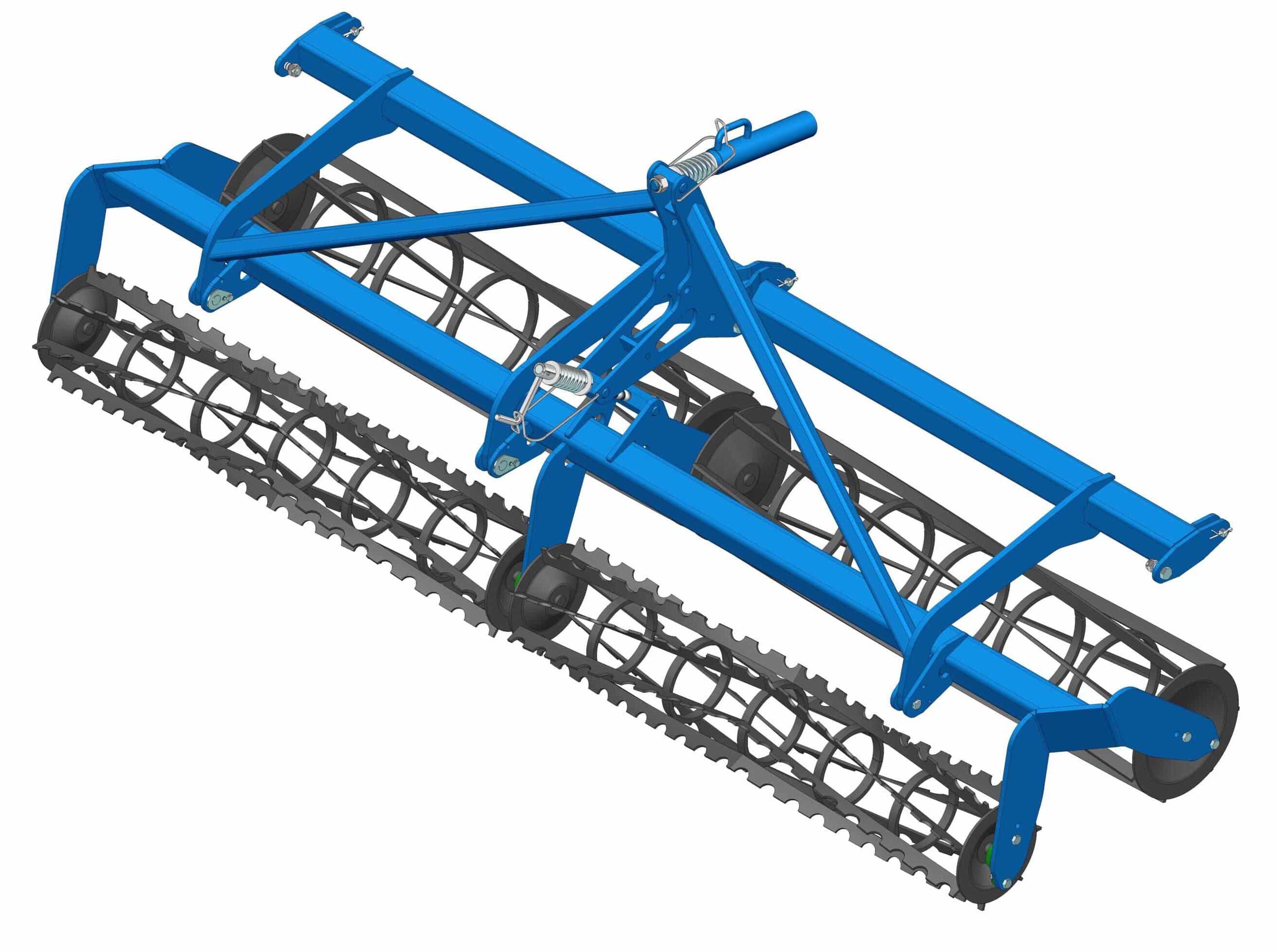

Double roller 7 flat bars roller Ø320mm and crosskillette Ø290mm

Double rouleau 7 barres plates Ø320mm et 7 barres crénelées Ø270mm

Double rouleau 7 barres crénelées Ø270mm

Double rouleau 7 barres plates Ø320mm

Double rouleau 7 barres carré 25mm Ø320mm et 7 barres crénelées Ø270mm

Double rouleau 8 barres carré 25mm Ø380mm et 7 barres carré 25mm Ø320mm

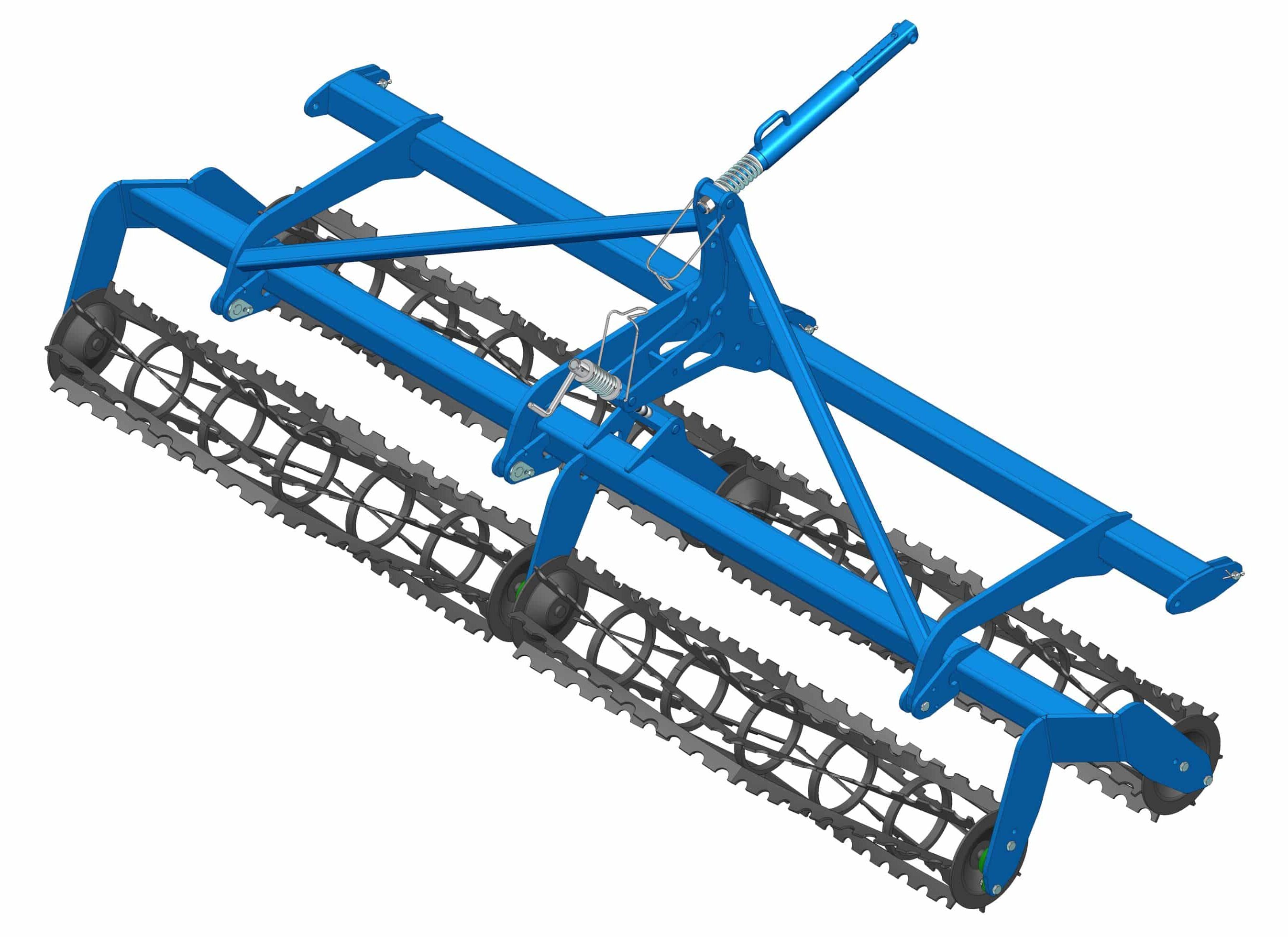

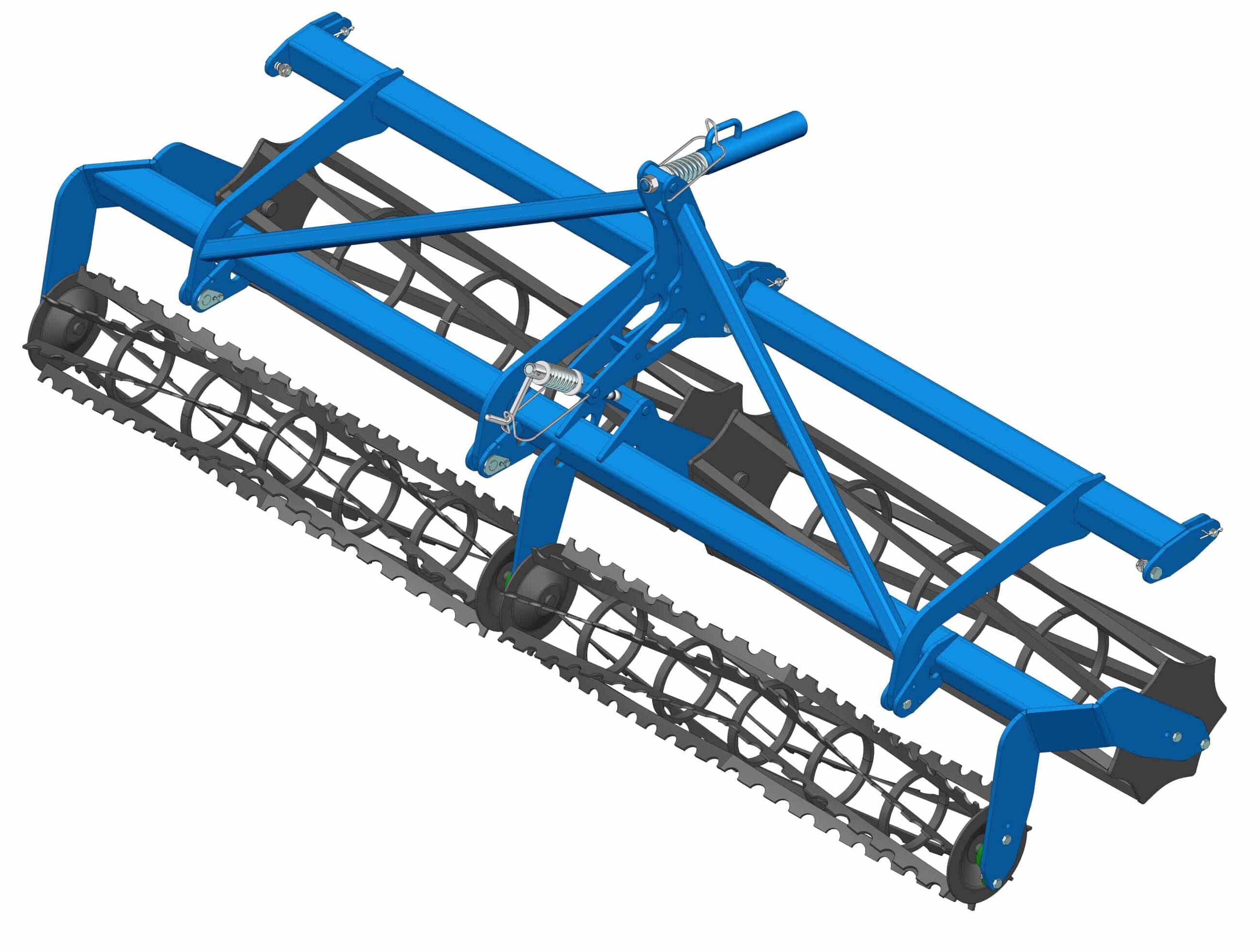

Twin roller 7 flat bars Ø320mm and 7 notched bars Ø 270mm

Double 7 notched bars roller Ø270mm

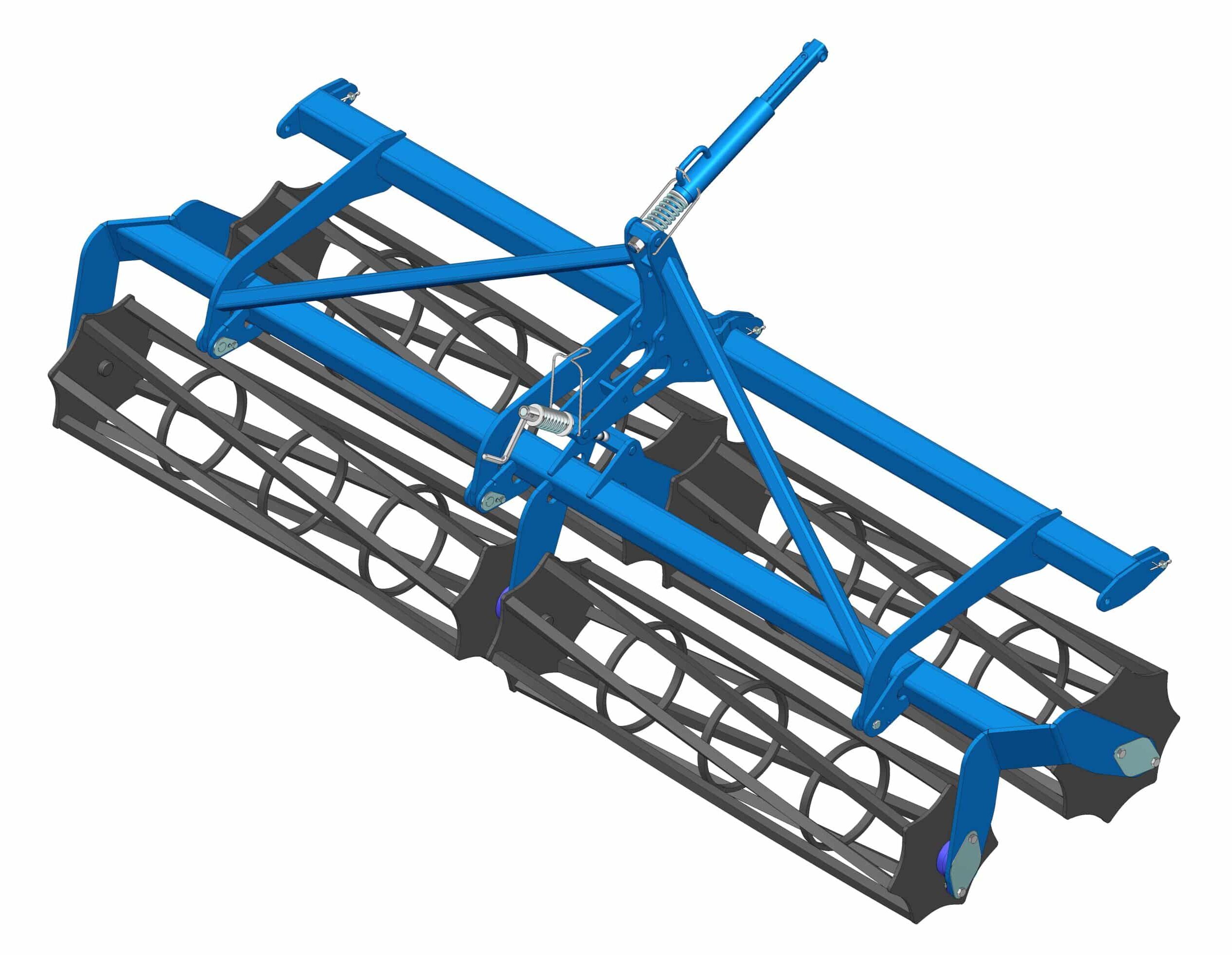

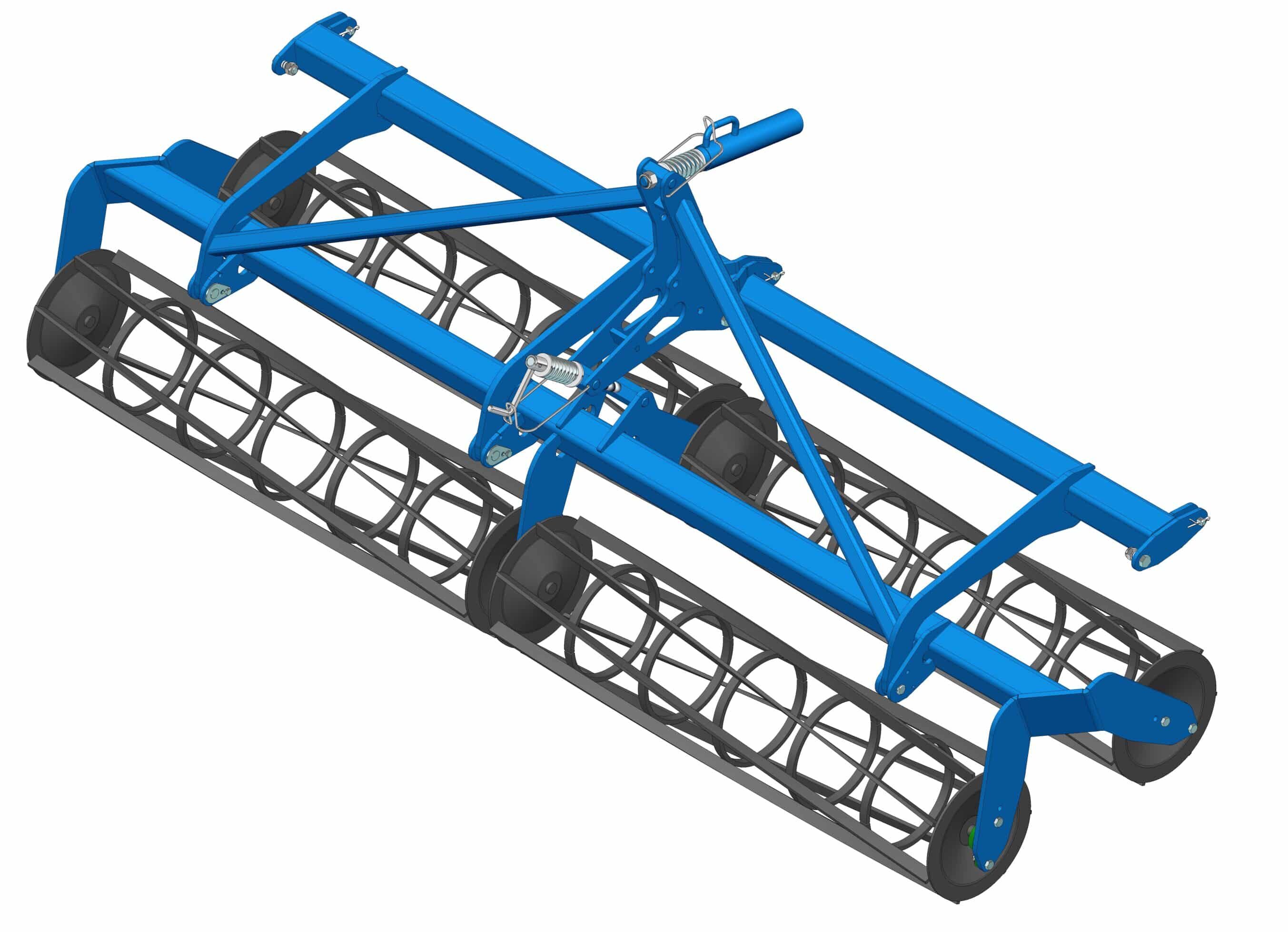

Double 7 flat bars roller Ø320mm

Double 7 square bars (25mm) roller Ø320 and 7 notched bar roller Ø270mm

Double 8 square bars (25mm) roller Ø380mm and Single 7 square bars (25mm) Ø320mm

THE OPTIONS

Attelage avancé universel

Paire de roues pneu 10 plis Ø535 x 168 mm de 5m90 à 8m10

1 roue penu 10 plis Ø535 x 168 mm (position centrale)

Doubles roues centrales 10 plis Ø535 x 168 mm avec assistance de réglage

Jeu de 4 effaceurs de trace carré 25 compatible lame Flexiboard

Advanced universal hitch

Pair of wheels with 10-ply 535×168 mm tyres with track adjustable from 5.90 to 8.10 m

1 rubber wheel 10 plys Ø535×168 mm
(central position)

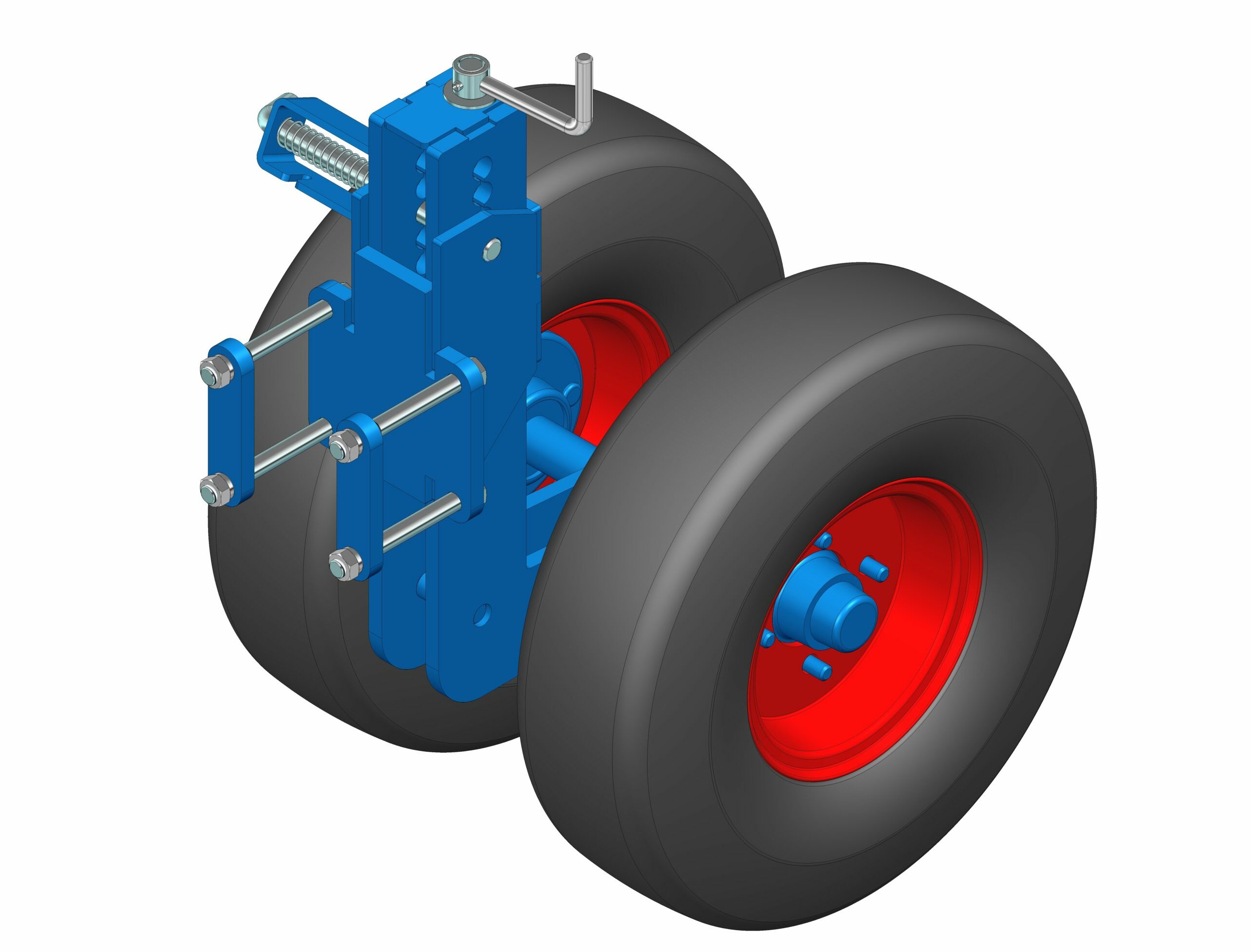

Double central wheel 10 plys Ø535x168mm with assistancy in adjustment

Set of 4 wheel mark eradicators, 25 square compatible with the flexiboard blade

Jeu de 1 bride pour abaisser dent 32×12 (45mm)

Jeu de 1 bride pour abaisser dent 45×12 (45mm)

Paire de déflecteurs latéraux sur parallélogramme

Jeu de 4 béquilles

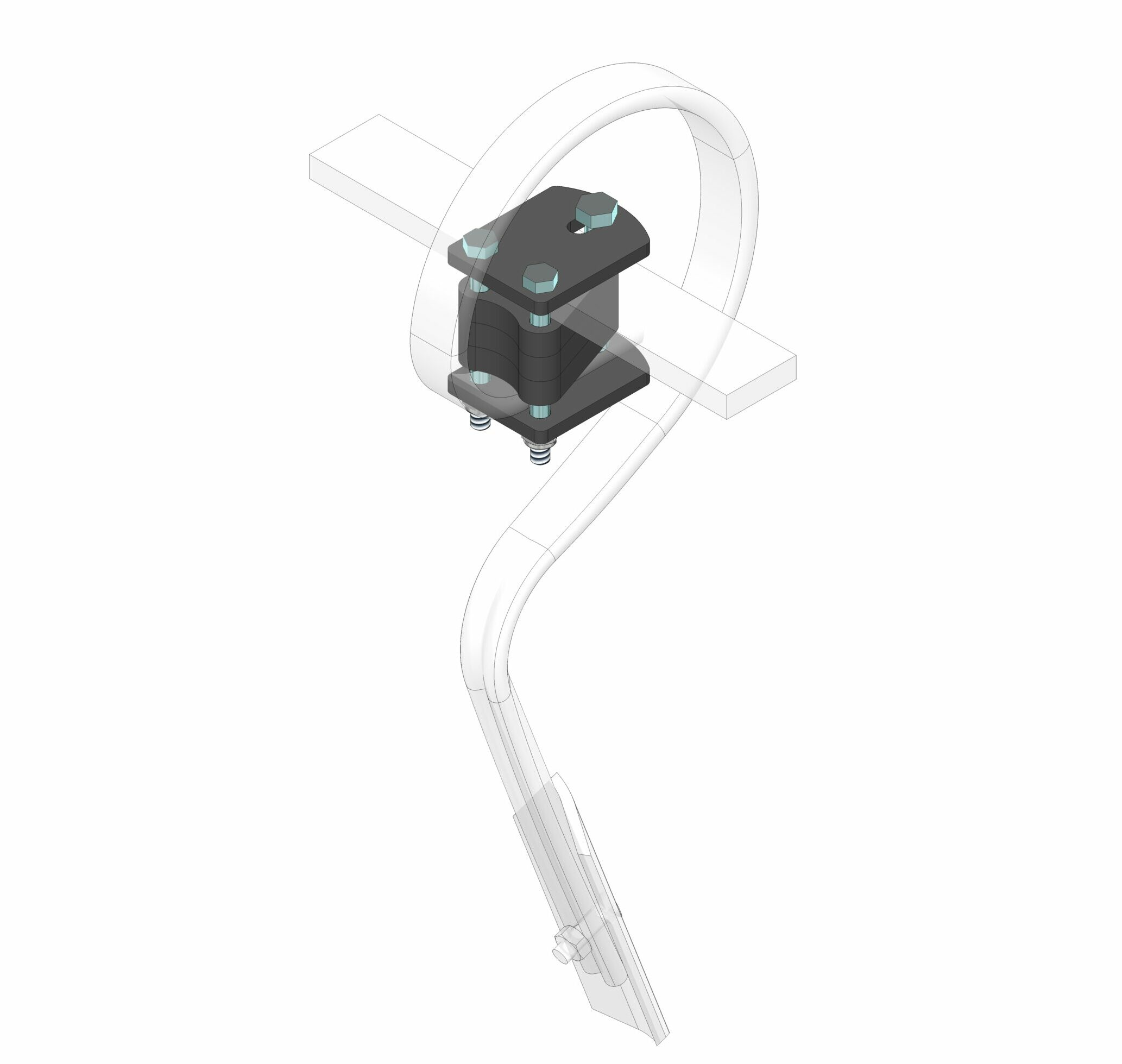

Set of 1 bride for lowering 32×12 tine (45mm)

Set of 1 tine for lowering 45×12 tine (45mm)

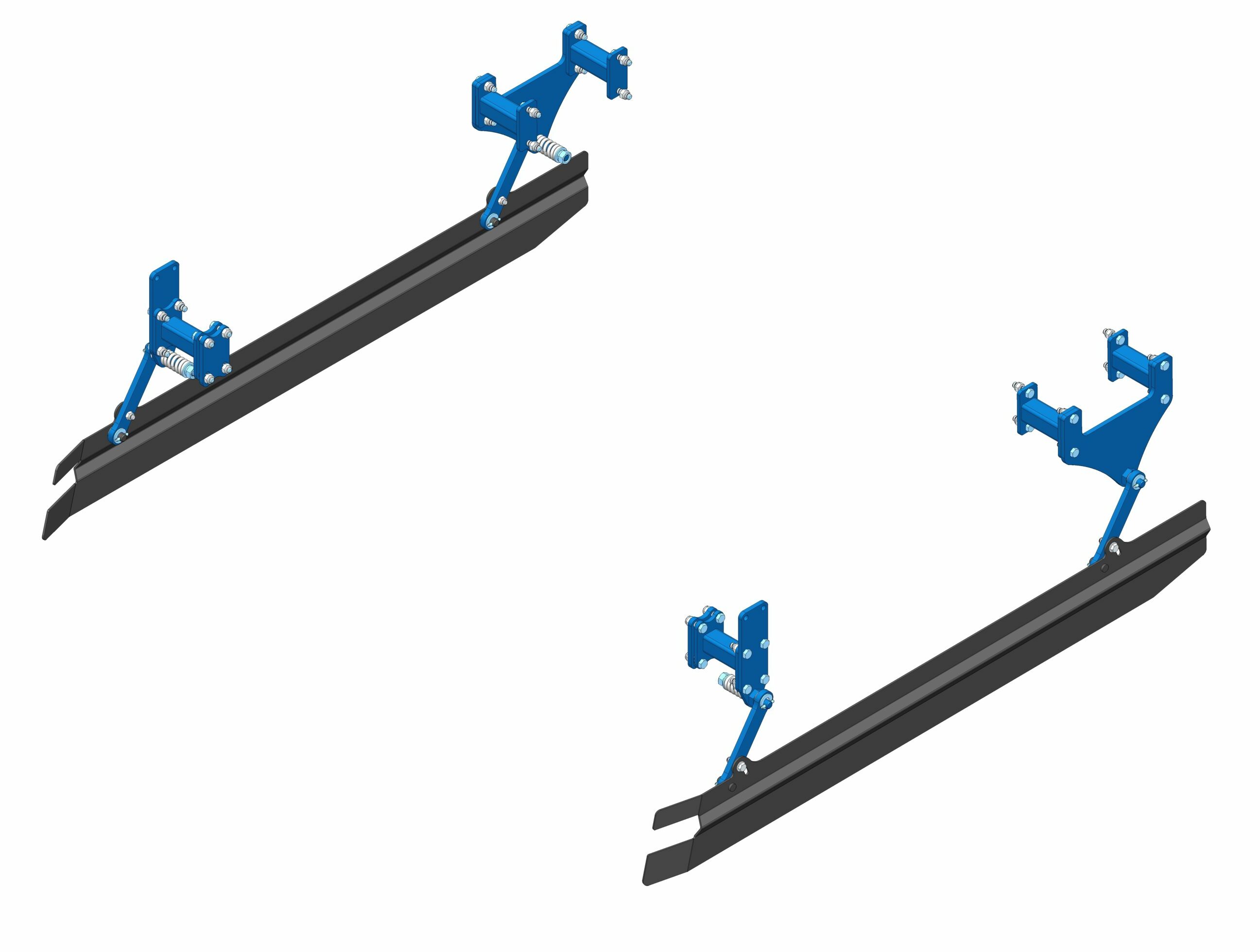

A pair of parallelogram mounted lateral
deflectors

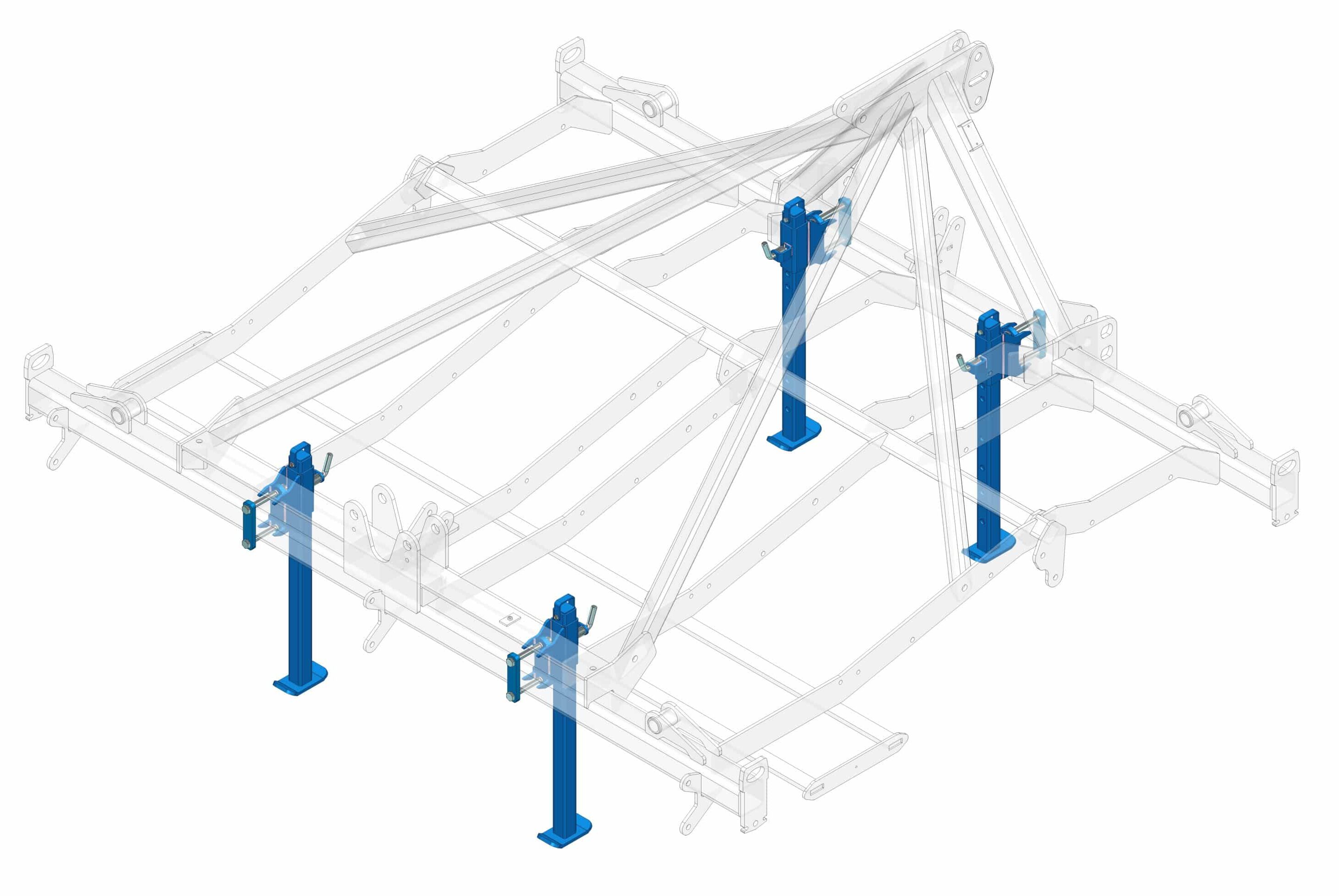

Set of 4 stands
