OUR HEAVY SPRING TINE CULTIVATORS

No chance for the volunteer survival!

The most versatile of spring tine cultivators!

The PENTERRA makes it possible to prepare the seedbeds, to resume ploughing and is an ideal tool to carry out a second cultivation. It can be used from 3 to 15cm for a 12km/h speed !

Tines are mounted on 5 rows, with exceptional under beam clearance, thus providing unequalled soil disturbance! It will leave a perfectly worked soil, leveled and restored and perfectly manages crop residues.
With its low power and low fuel consumption, it is the ally of all ground preparation work.
PENTERRA can be created with a tine 70×12 or an exclusive tine 80×12 or a special tine 80×12 with return spring. Spacing can be 125, 150 or 175mm depending on customer needs.

Available from 3 to 7m !

See specifications

Hydraulic locking safety (transport and work)
2 types of tines and 3 spacing to be chosen Great consistancy in working depth

A demonstration ?

Make a request

The documentation

Download the documentation

Our importers

View the map

The product notice

Download the notice

Spare parts

Discover

Download the catalogue voucher
(This can be found in the instruction leaflet)

PENTERRA>NOTICE>38017202

Download the notice

THE FRAME

3 point linkage between clevis N°3 – Pin N° 2/3
Rigid models : mechnically welded frame
Folding models : mechanically welded frame with rectangular tube 180X80
5 tines carrying beams square tube 70, and bracket thickness 10 mm

Hydraulic folding to 3 m using 4 double acting cylinders with a hydraulic safety mechanism
Levellers at the rear of the last row of tines
Road light and signals included

Our recommandations

Widths : from 3 to 7m

	FIXED						FOLDING
Width (m)	3			3,50			4			5			6			7
Inter-tine spacing (mm)	125	150	175	125	150	175	125	150	175	125	150	175	125	150	175	125	150	175
Number of tines	24	20	18	26	22	20	32	28	24	40	34	30	48	40	34	56	46	40
Power requirement (hp)	80 à 100			90 à 110			120 à 160			130 à 190			150 à 210			180 à 230
Weight (kg)*	1460			159			2220			2470			2700			3000

*Depending on equipments (average value with tine spacing of 150mm, tine 70X12 and flexible blade roller as back equipment)

Strong points

LES AVANTAGES D’UN CHÂSSIS 5 BARRES

WELL FINISHED WORK

3 It is possible to adjust the implement settings both easily, and without tools
For the best results, opt for a rear packer roller (see the equipment page)

TINES

Standard 80×12
tine + lock spring
65x8x295
standard reversible
ploughshare
Clearance 650mm

THE EQUIPMENTS

Lame Flexiboard avec réglage mécanique ou hydraulique

Simple rouleau 8 barres carré 25mm Ø380 avec réglage mécanique

Simple rouleau 8 barres carré 25mm Ø380mm avec réglage mécanique

Double rouleau 8 barres carré 25mm Ø380 avec réglage mécanique

Double rouleau 8 barres carré 25mm Ø380mm avec réglage mécanique

Simple rouleau 8 barres carré 25mm Ø445mm avec réglage mécanique

Flexiboard levelling blade with hydraulic adjustment

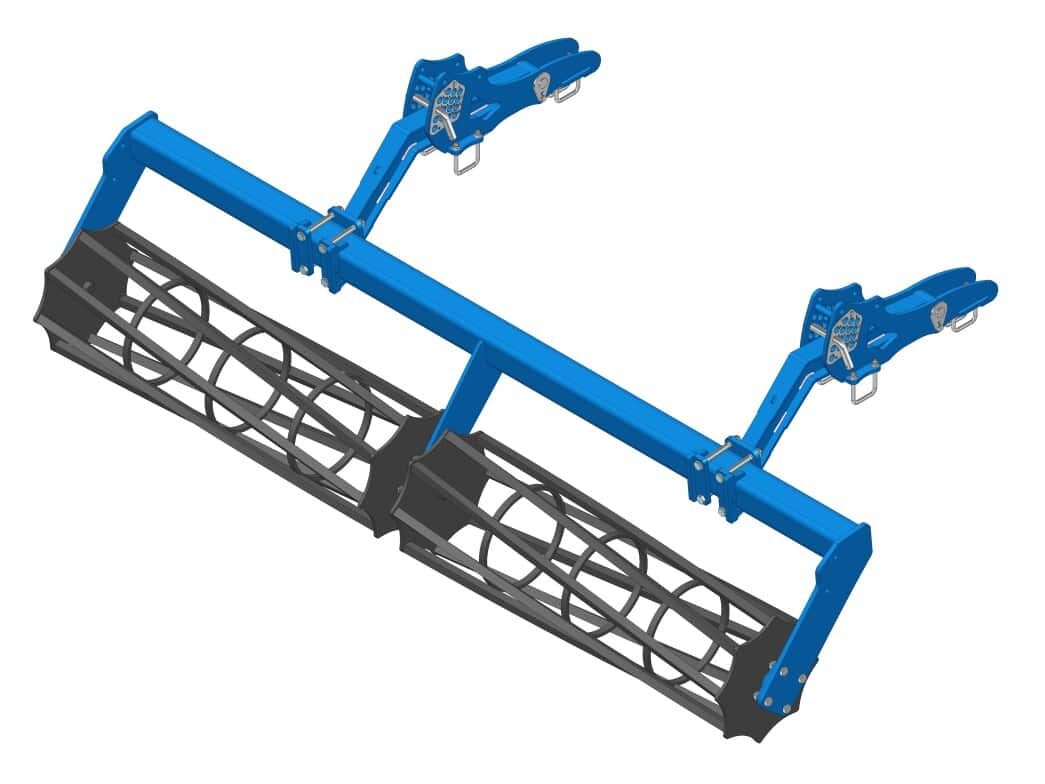

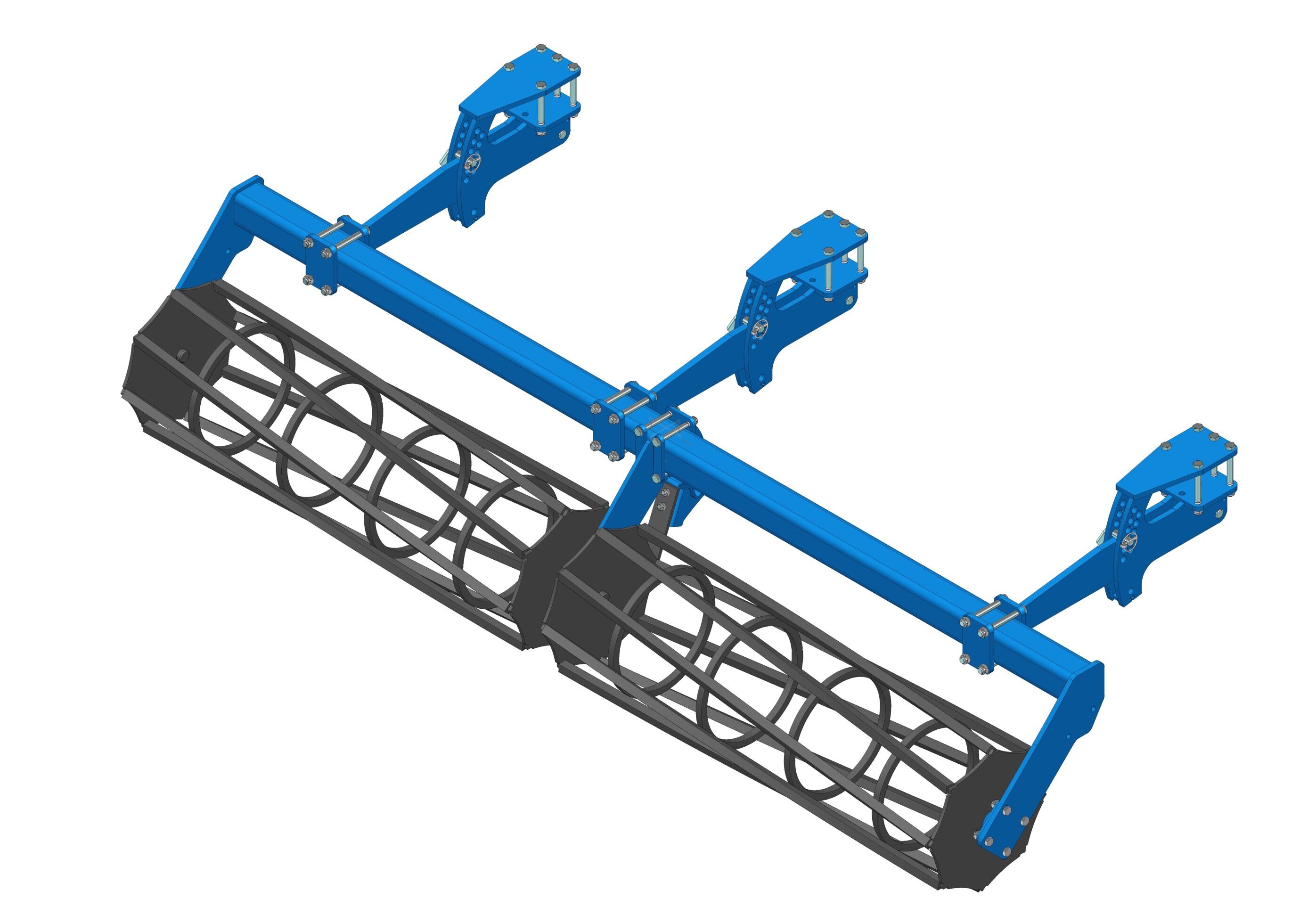

Single 8 square bars (25 mm) roller Ø380 with mechanical adjustment

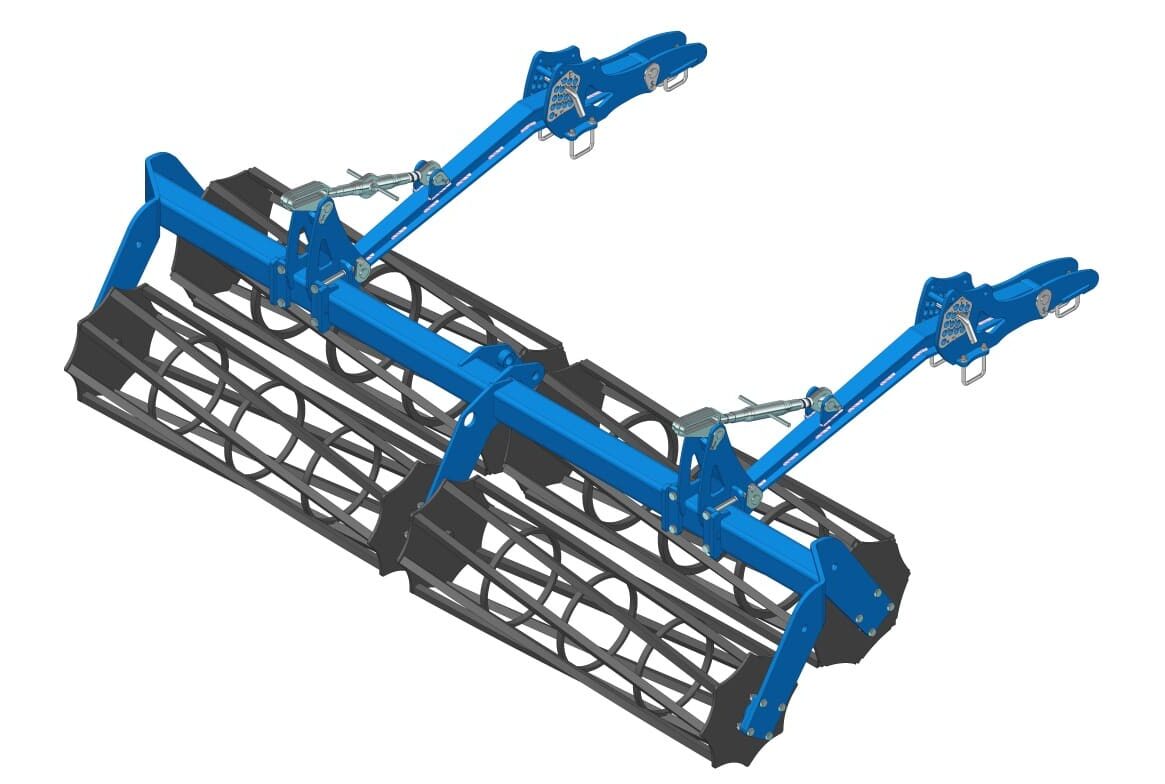

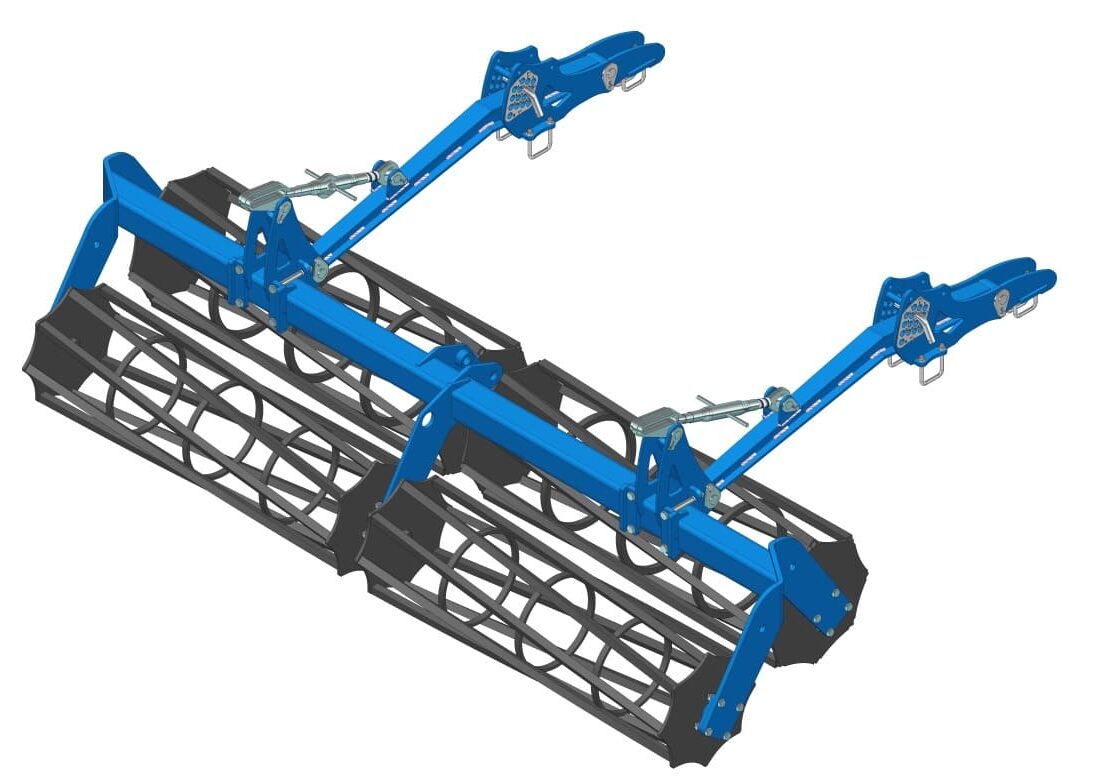

Double 8 square bar (25mm) roller Ø380 with mechanical adjustment

Single 8 square bars (25mm) roller Ø380 or Ø445 with mechanical adjustment

Double rouleau 8 barres carré 25mm Ø445mm avec réglage mécanique

Simple rouleau U Ø500mm avec réglage mécanique + lame niveleuse

Double rouleau U Ø500mm avec réglage mécanique

Simple rouleau à lame flexibles Ø520mm avec réglage mécanique + lame niveleuse

Double 8 square bar (25mm) roller Ø445 with mechanical adjustment

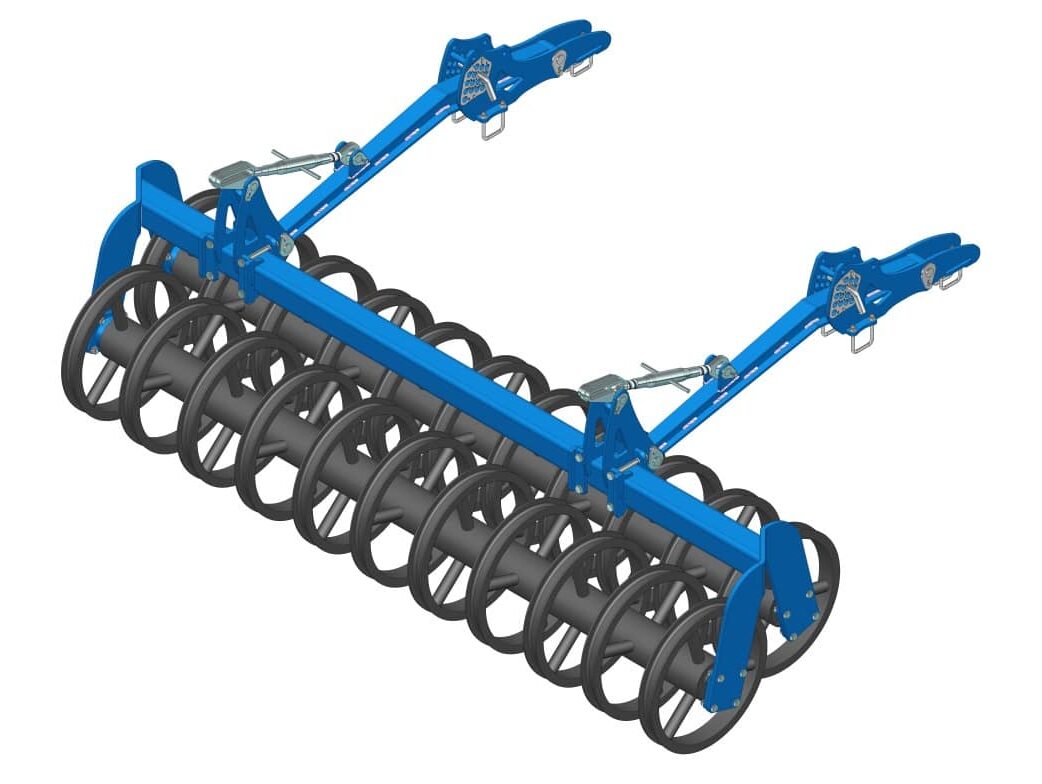

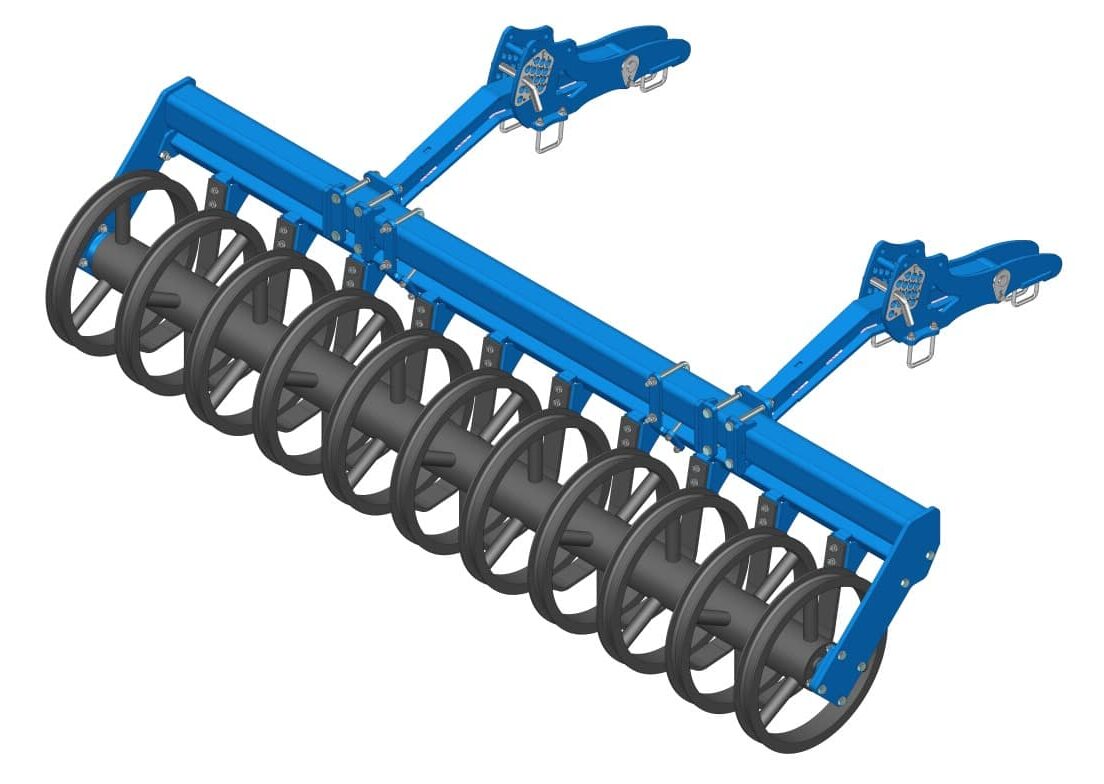

Simple U roller Ø 500 with mechanical adjustment +
levelling blade

Double U roller U Ø500 with mechanical adjustment

Simple roller with flexible blade Ø 520 with mechanical adjustment + levelling blade

Double rouleau à lame flexibles Ø520mm avec réglage mécanique

Double rouleau 8 barres carré 25mm Ø445mm et 8 barres carré 25mm Ø380mm avec réglage mécanique

Herse peigne Ø13mm sur 3 barres avec réglage mécanique

Herse peigne Ø13mm avec réglage mécanique / 1 rangée pour simple rouleau ou double rouleau

Double flexible blades roller Ø520 with mechnical adjustment

Double 8 square bars (25mm) roller Ø445
and 8 square bars (25mm) roller Ø380 with mechanical adjustment

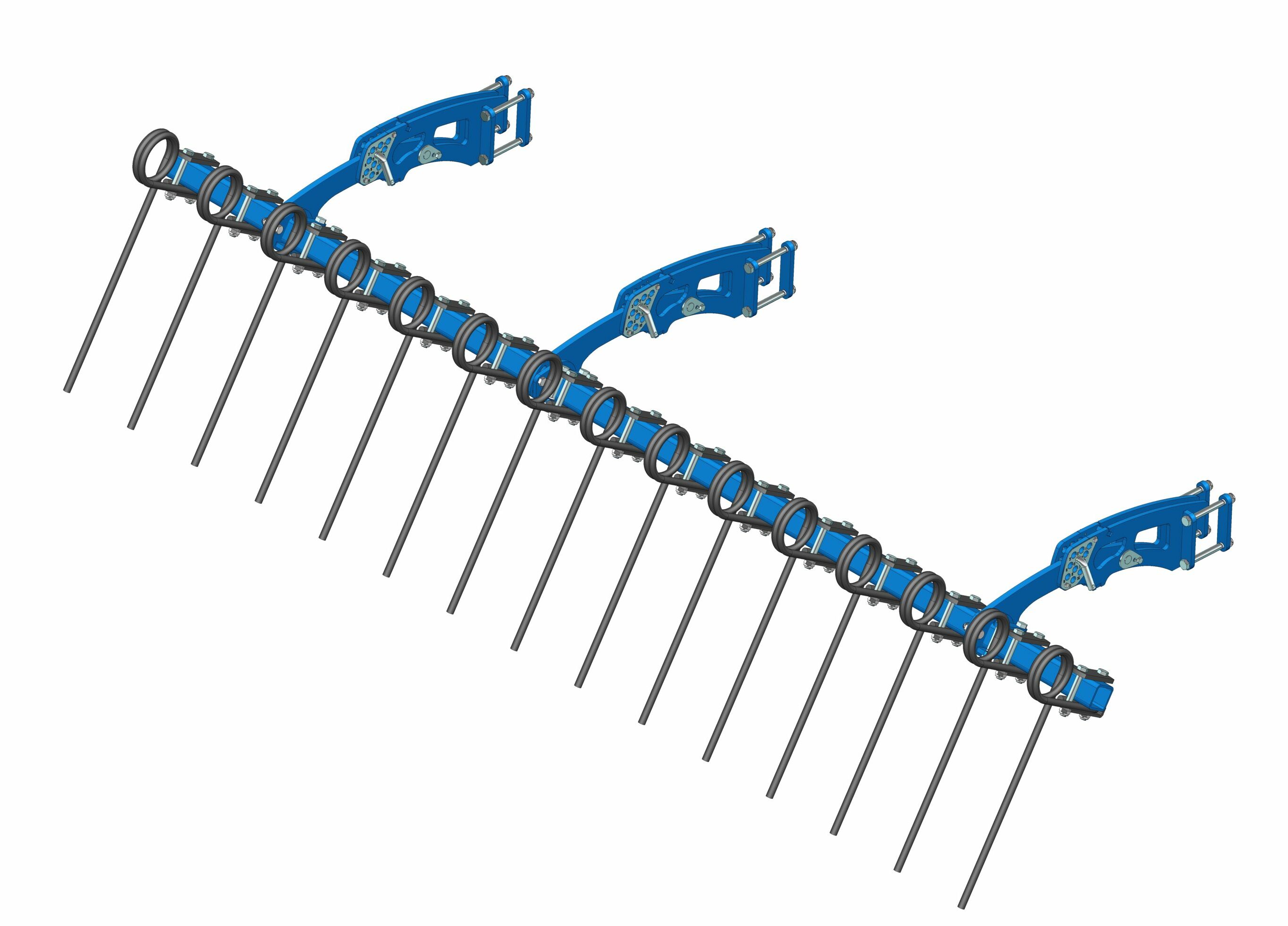

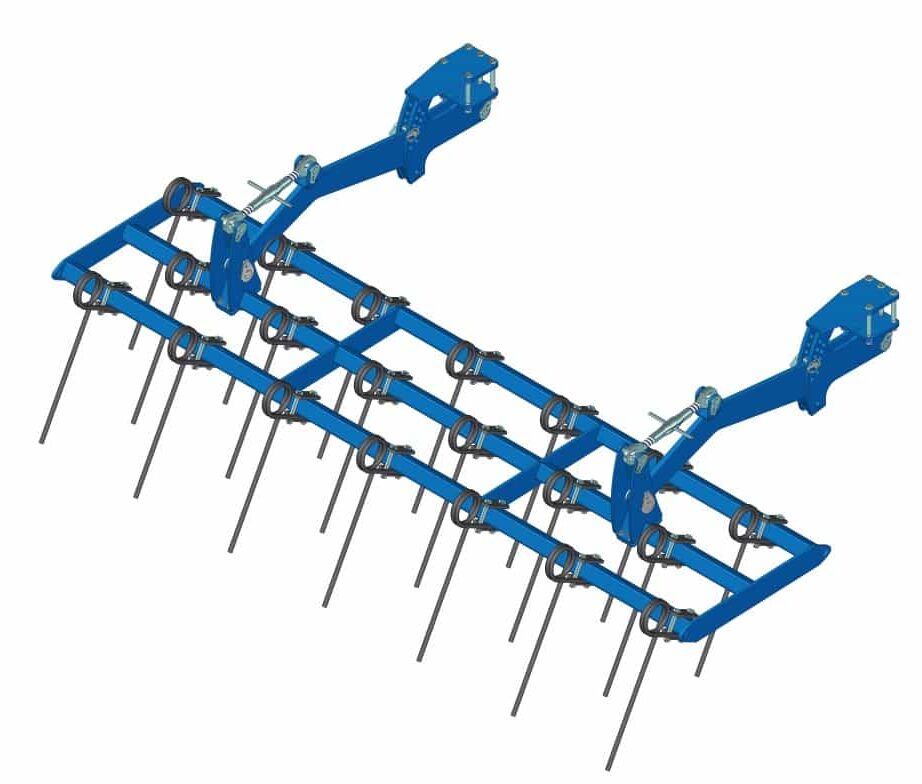

Comb harrow Ø13 on 3 bars with mechanical adjustment

Comb harrow Ø13 with mechanical adjustment
on a single bar for single or double roller

OPT FOR THE SEMI-MOUNTED VERSION
to relieve the carrying forward load when coupling et make easy transports.

IMPORTANT STEERING ANGLE !

REGISTERED FOR THE ROAD BY THE DREAL

THE OPTIONS

Jeu de 4 effaceurs de trace carré 25 compatible lame Flexiboard

Paire de déflecteurs latéraux sur parrallélogramme

Paire de roue de terrage simple Ø584x236mm

Paire de roue de terrage double Ø584x237mm

Set of 4 wheel mark eradicators, 25 square
compatible with the flexiboard blade

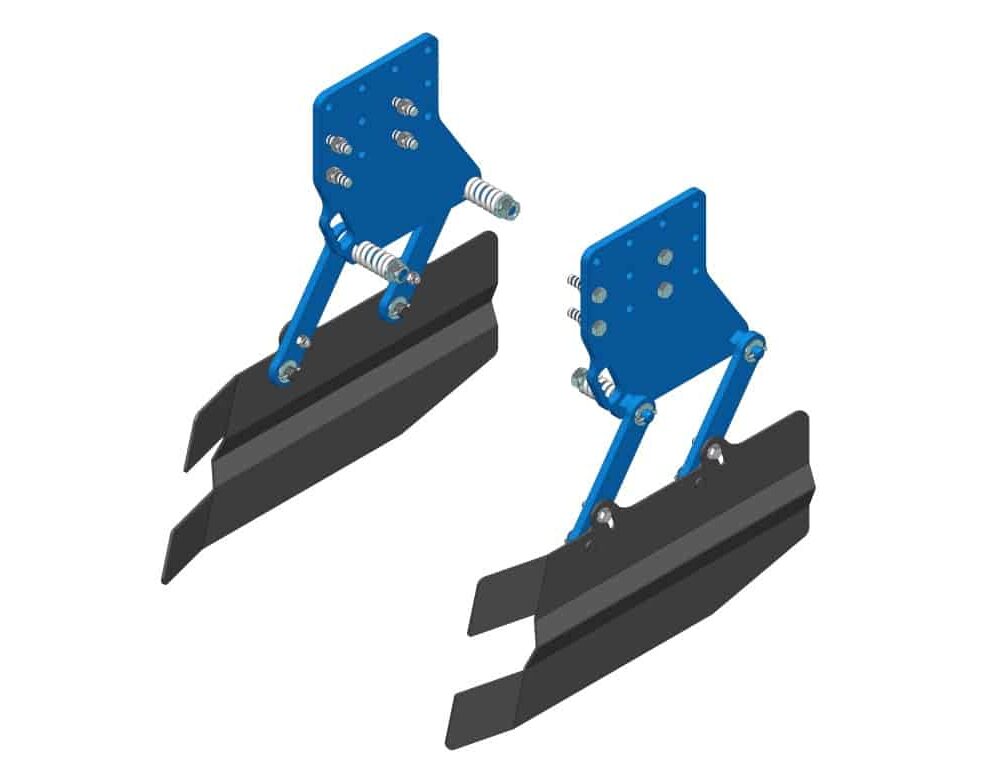

A pair of parallelogram mounted lateral deflectors

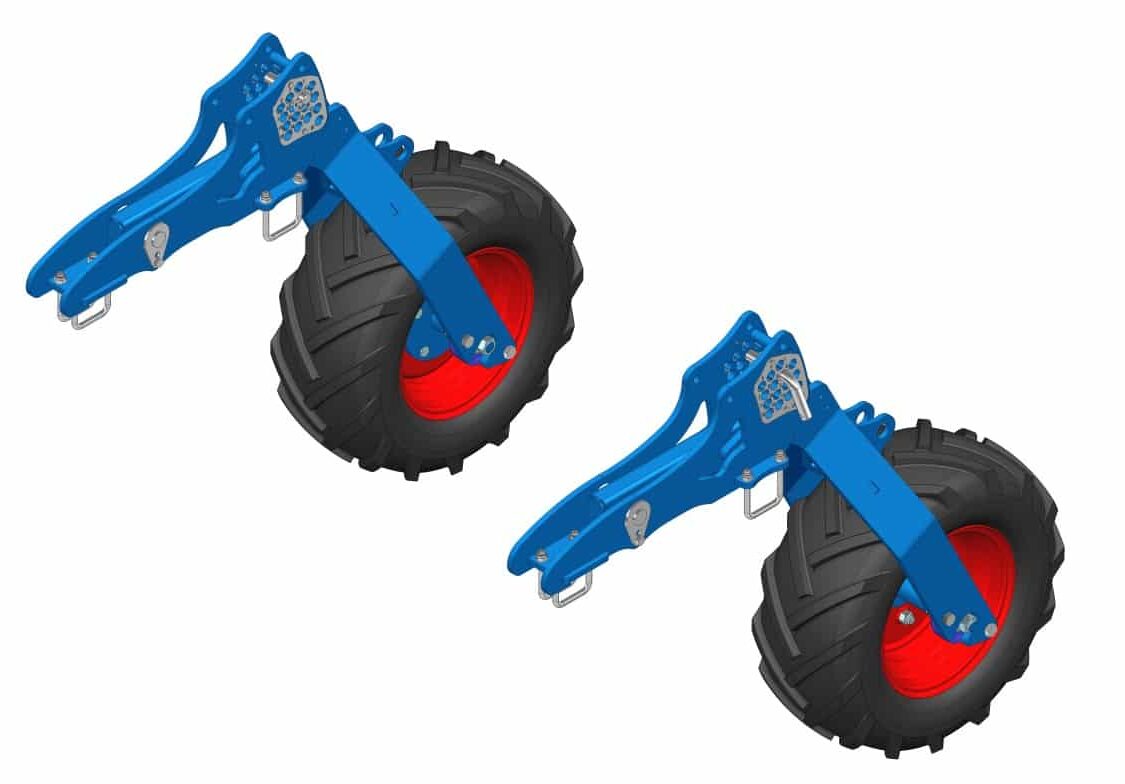

Pair of simple depth wheels Ø584×236

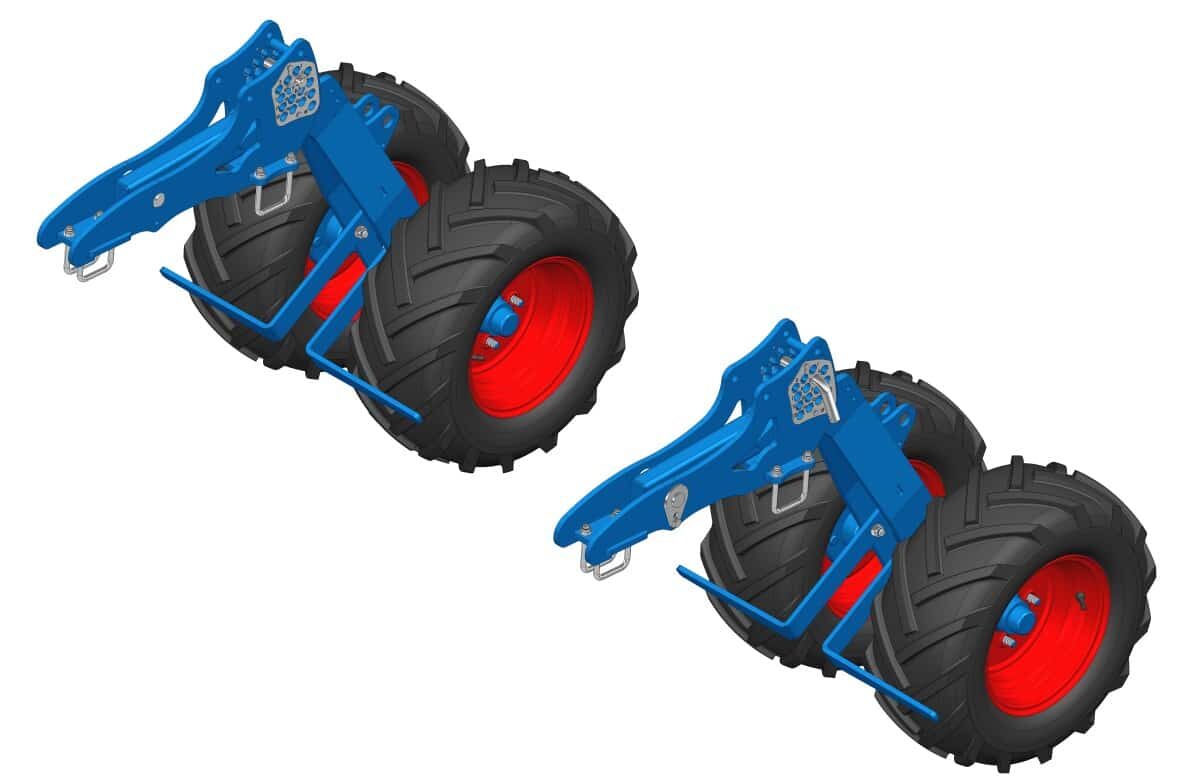

Pair of double depth control wheel Ø584×236

Kit semi-porté, roues 400/60×15.5mm – Ø870x400mm – Voie 2m40

Soc triangulaire 200×8mm ou 250×8mm

Version carbure

Semi-mounted kit, wheels 400/60×15.5 – Ø 870×400
Tractor’s track 2m40

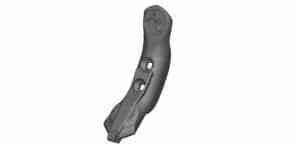

Triangular ploughshare
200×8 or 250×8

Carbid Version

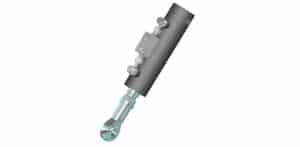

OPT FOR HYDRAULIC ADJUSTMENT
Higher accuracy from the cab

The PENTERRA enables you to control the depth, the packer roller pressure, and the levelling boards from the comfort of your tractor cab.

1 Hydraulic pair exit for standard working
1 Hydraulic pair exit for standard folding / unfolding
1 Hydraulic pair exit for semi-mounted version
