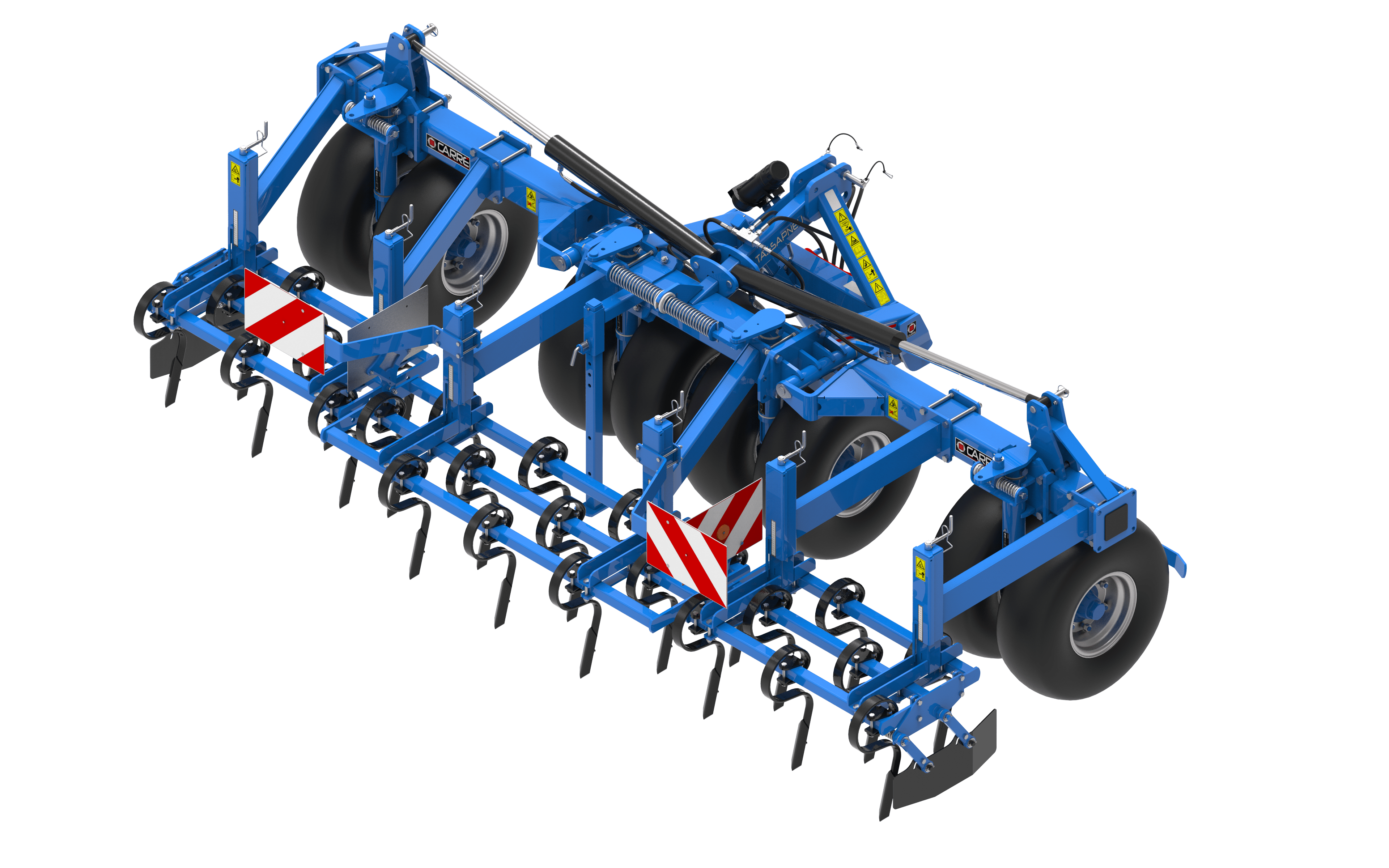

COMPACTING ROLLER

Break up, level and consolidate with a reinforced balance !

With its self-directional system and its tires 10.75 X 15/10 (Ø 760) its robustness is no longer to be demonstrated.
Compact frame with high visibility.

Equip it with 45×12 tines to improve its efficiency and homogenize the tillage. Scrapers are included.

Available from 1.5 to 6m !

See specifications

THE FRAME

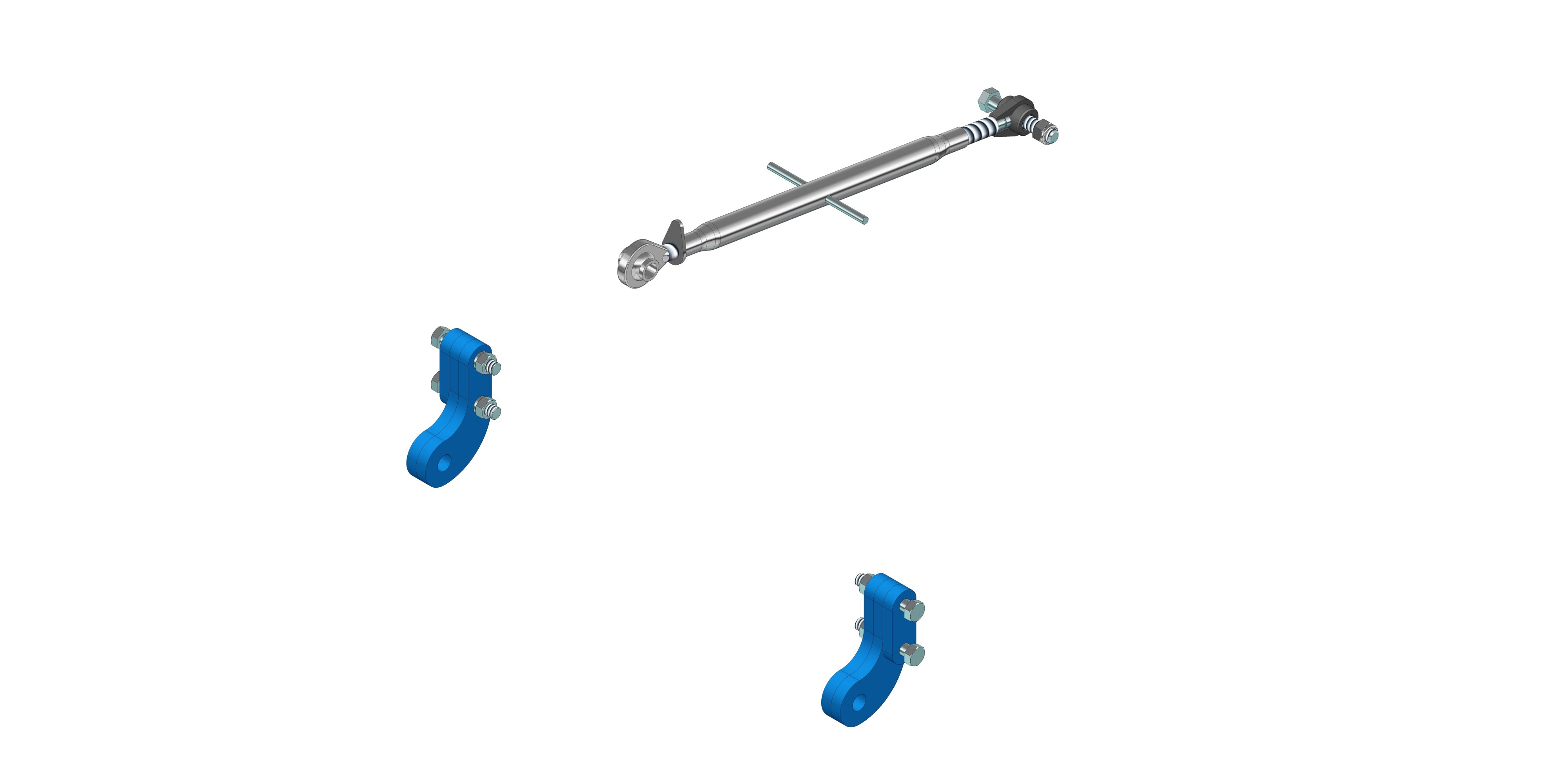

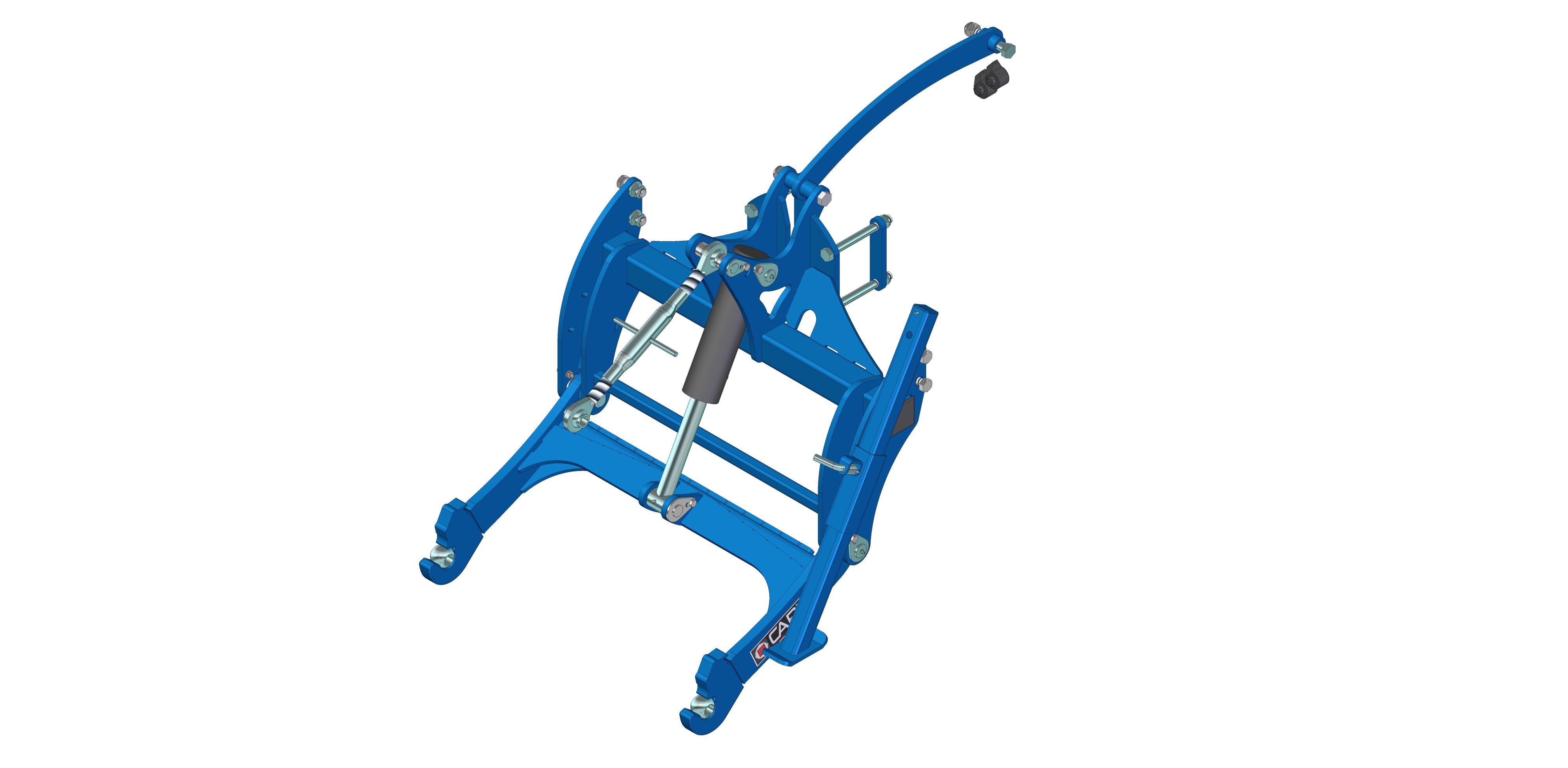

3 point hitch with semi-automatic bar n°2 on 4 pressing points
Square tube 140mm frame rigid or folding at 2,5m, auto-directionnal with spring
2 pairs of pneumatic wheels 10;75X15/10 (Ø 760) with pivoting on an axle Ø60 offset to the front, boot scraper included

Self steering wheels with centering by springs on the extension with spacing adjustment
Axles mounted on polyamide bushings

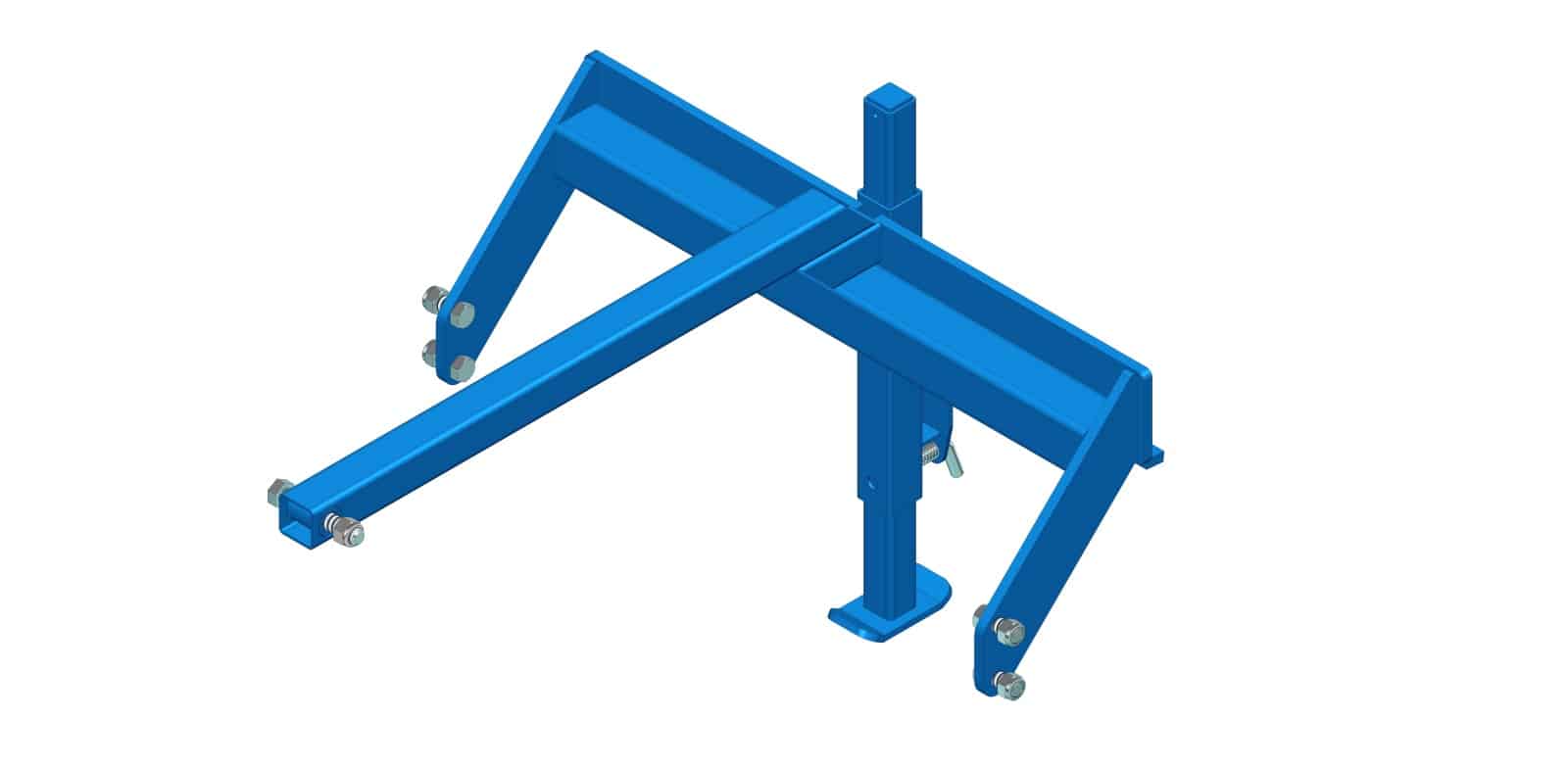

Rear parking stand

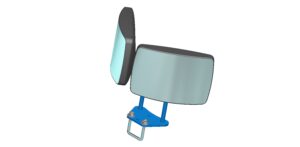

Road markers included

Our recommandations

Width : from 1,5 to 6 m

	FIXED		FOLDING
Width (m)	1,5	3	3,50	4	4,50	5	6
Number of wheels	4	8					12
Weight (kg)	400	760	830				1185

Strong points

LES AVANTAGES D’UN CHASSIS AUTO-DIRECTIONNEL

Well finished work

For higher efficiency, opt for a front tine equipment.

THE EQUIPMENTS

Equipement avant dents droites 32×12mm sur 3 barres Pas de 120mm Dégagement 450mm

Equipement avant dents droites 45×12mm sur 3 barres Pas de 160mm Dégagement 430mm

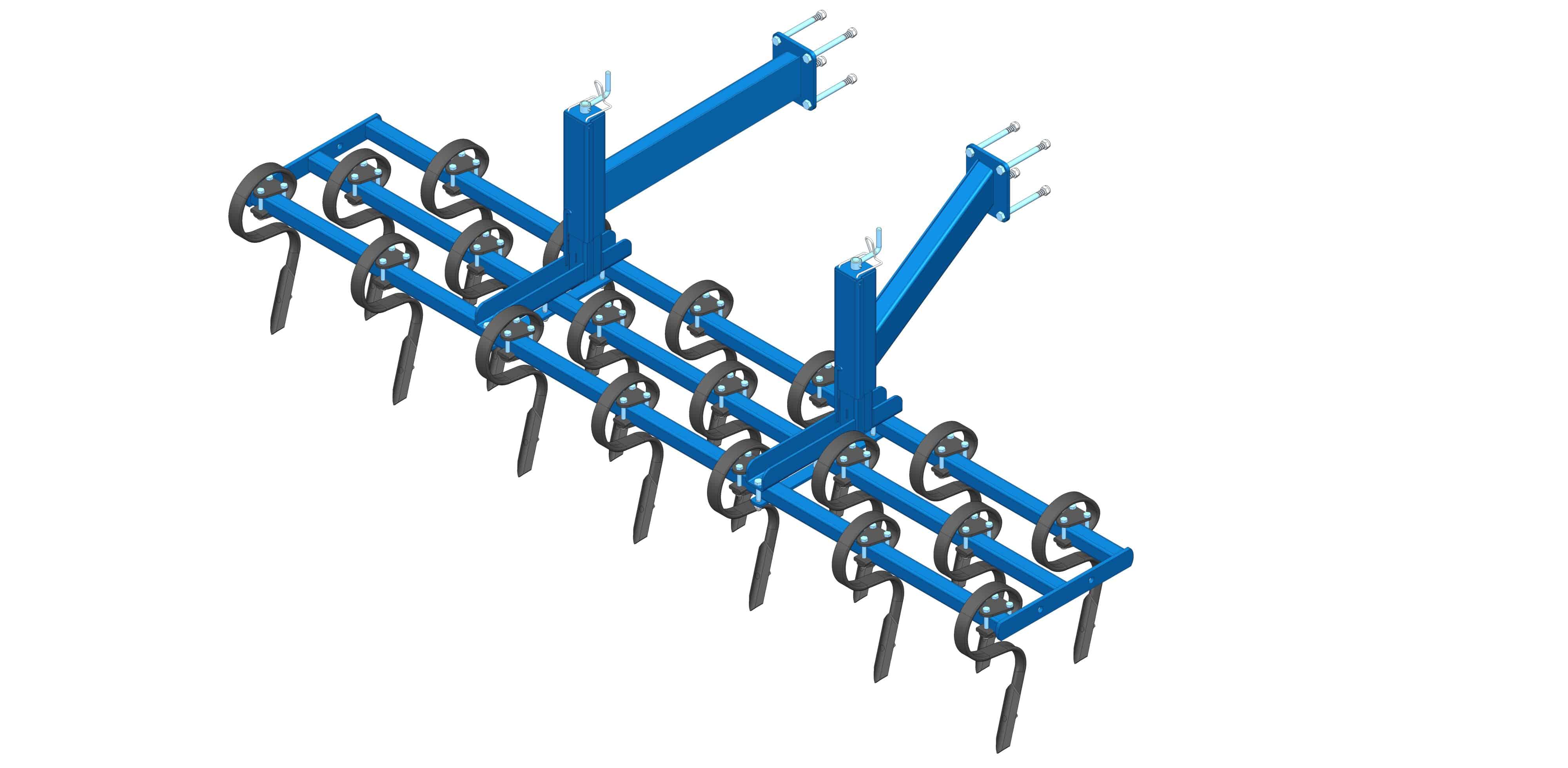

Front equipment with 32X12 tines
on 3 bars 120mm spacing, under
chassis clearance 450mm

Front equipment with 45×12 tines
on 3 bars 160mm spacing, under
chassis clearance 430mm

Tassapneu	FIXED				FOLDING
Width (m)	3		3,50		4		4,50		6
Inter-tine spacing (mm)	120	160	120	160	120	160	120	160	120	160
Number of tines	25	19	29	21	33	25	39	29	51	39
Power requirement (hp)	50	40	60	40	65	50	80	60	100	80
